Deploy app on minikube

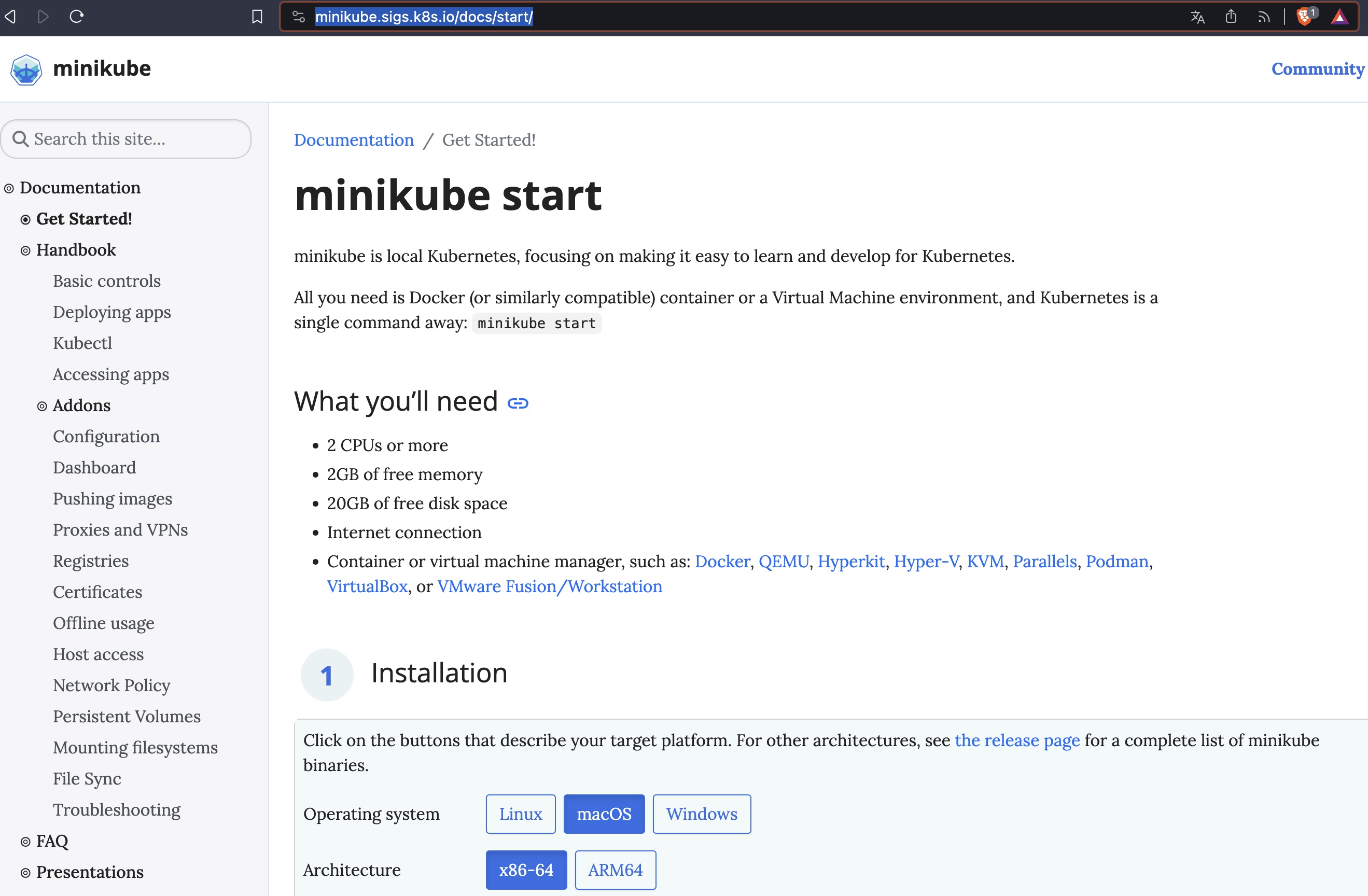

minikube starting

https://minikube.sigs.k8s.io/docs/start/


brew install minikube
which minikube

If which minikube fails after installation via brew, you may have to remove the old minikube links and link the newly installed binary:

brew unlink minikube
brew link minikube

Now let's get starting:

minikube start
# check the cluster
kubectl get po -A
# or
minikube kubectl -- get po -A
#
minikube dashboard
#
minikube stop

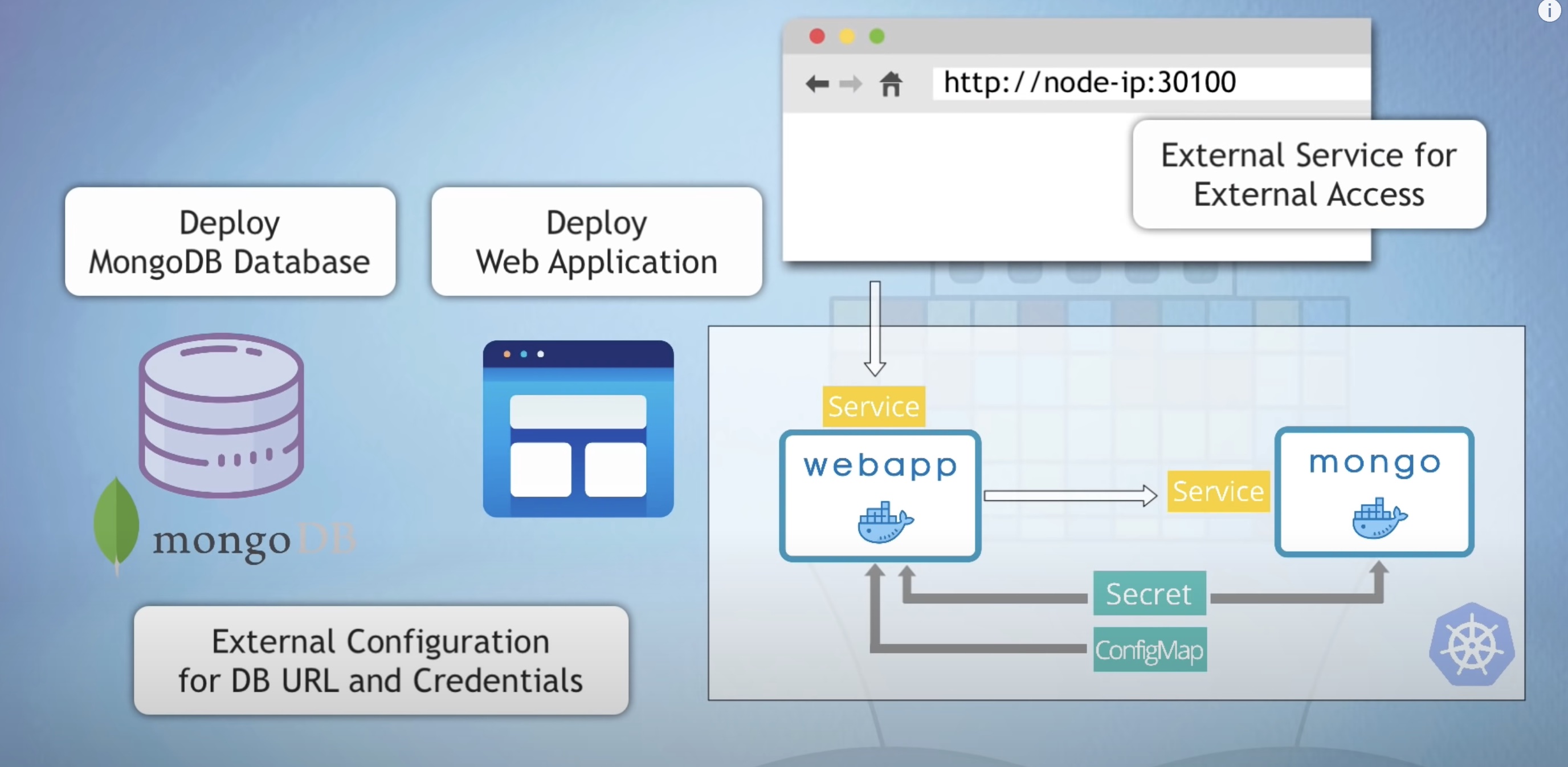

Example



cluster

It's a set of nodes. In the case of k8s are two master-nodes, several worker-nodes.

If you have two clusters you can use a tool as load-balancer to route the traffic between the two clusters.

The tools to handle two or more clusters are:

  • kubefed: allows to create a virtual a whole with the clusters. So it's easy to do some changes between them.
  • istio: allows to create a matrix network and route the traffic between the clusters.
  • rancher tool: allows to admin and apply configurations between the clusters.

context and namespace

you can setup the ~/.kube/config file to handle to k8 configuration. For instance:

contexts:
- context:
    cluster: my-cluster
    namespace: my-namespace-pro
    user: my-user
  name: my-context
  • context: is a param group of parameters to access to the cluster. The parameters are cluster name, namespace and user. You can have several context. For instance
  • namespace: is a logic partition inside de cluster to manage the resources and grants. For instance, to distinguish between the pre or pro pods visible to the connected user.
  • user: the user to connect to the cluster.

kubectl cli commands

kubectl get pod | configmap | secret | ... -o wide

kubectl get configmap -o wide

kubectl get secret -o wide

kubectl get all

kubectl apply -f mongo-config. yaml

kubectl config view to watch the ~/.kube/config file

kubectl config use-context <context-name>

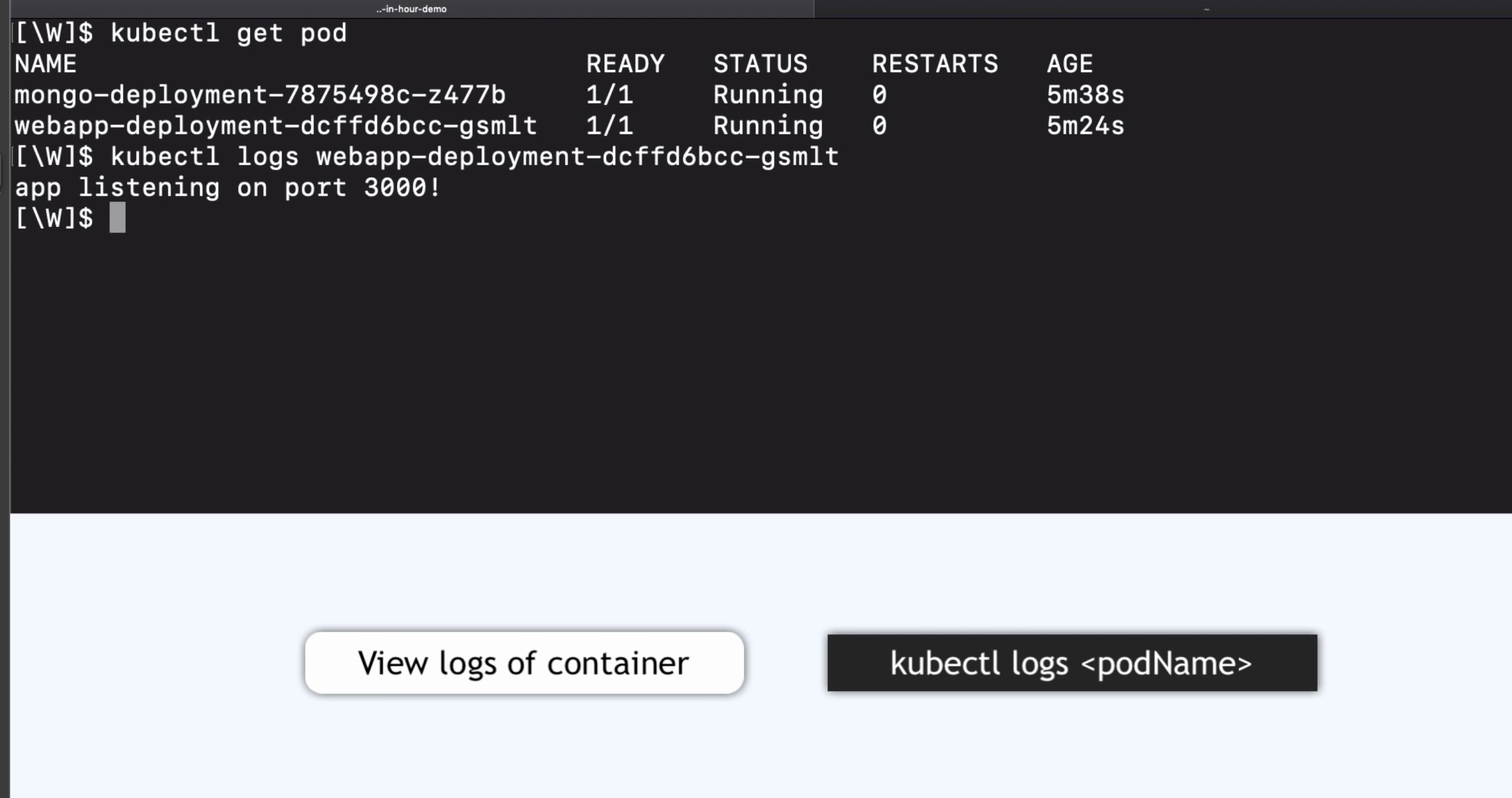

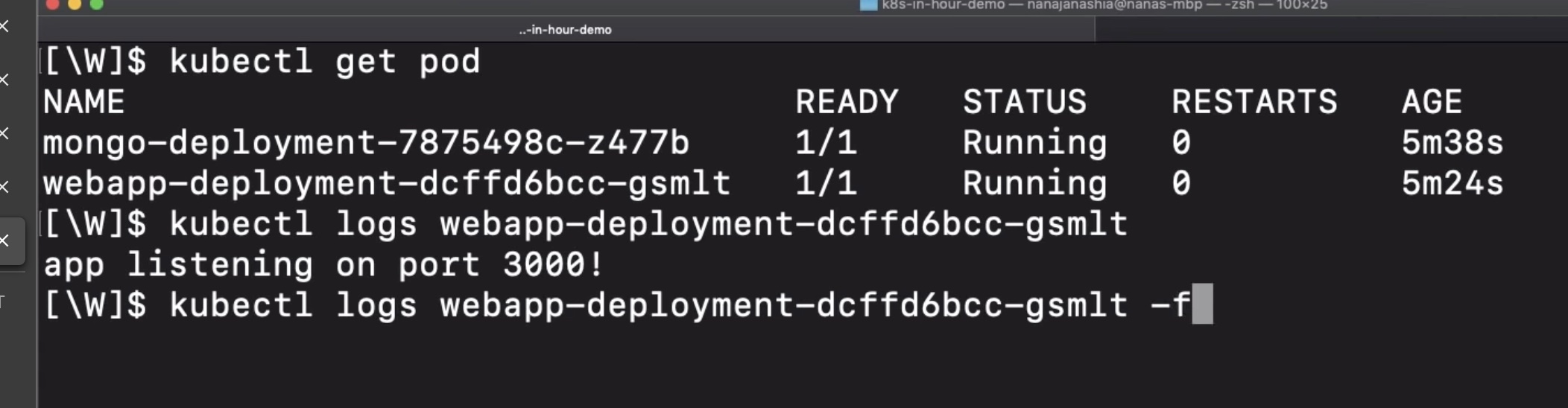

kubectl logs webapp-deployment-f8d7df85d-zf2h8 -f

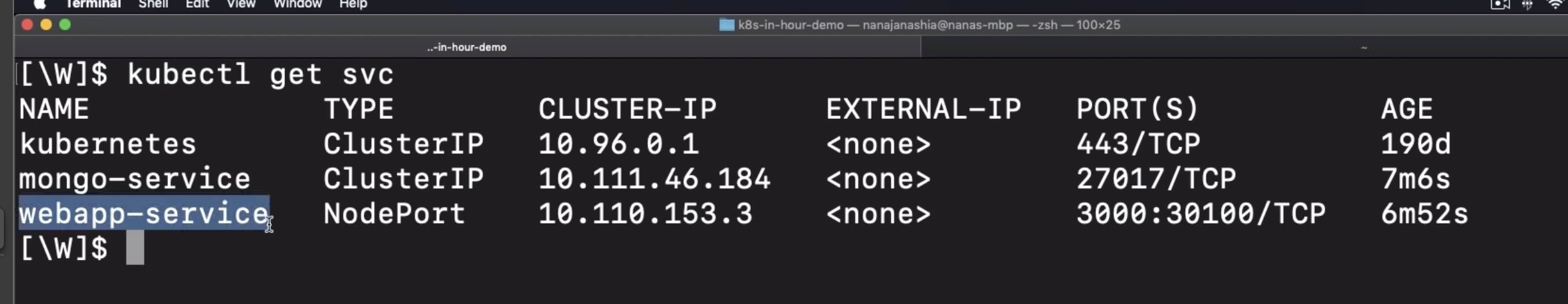

kubectl get services -o wide

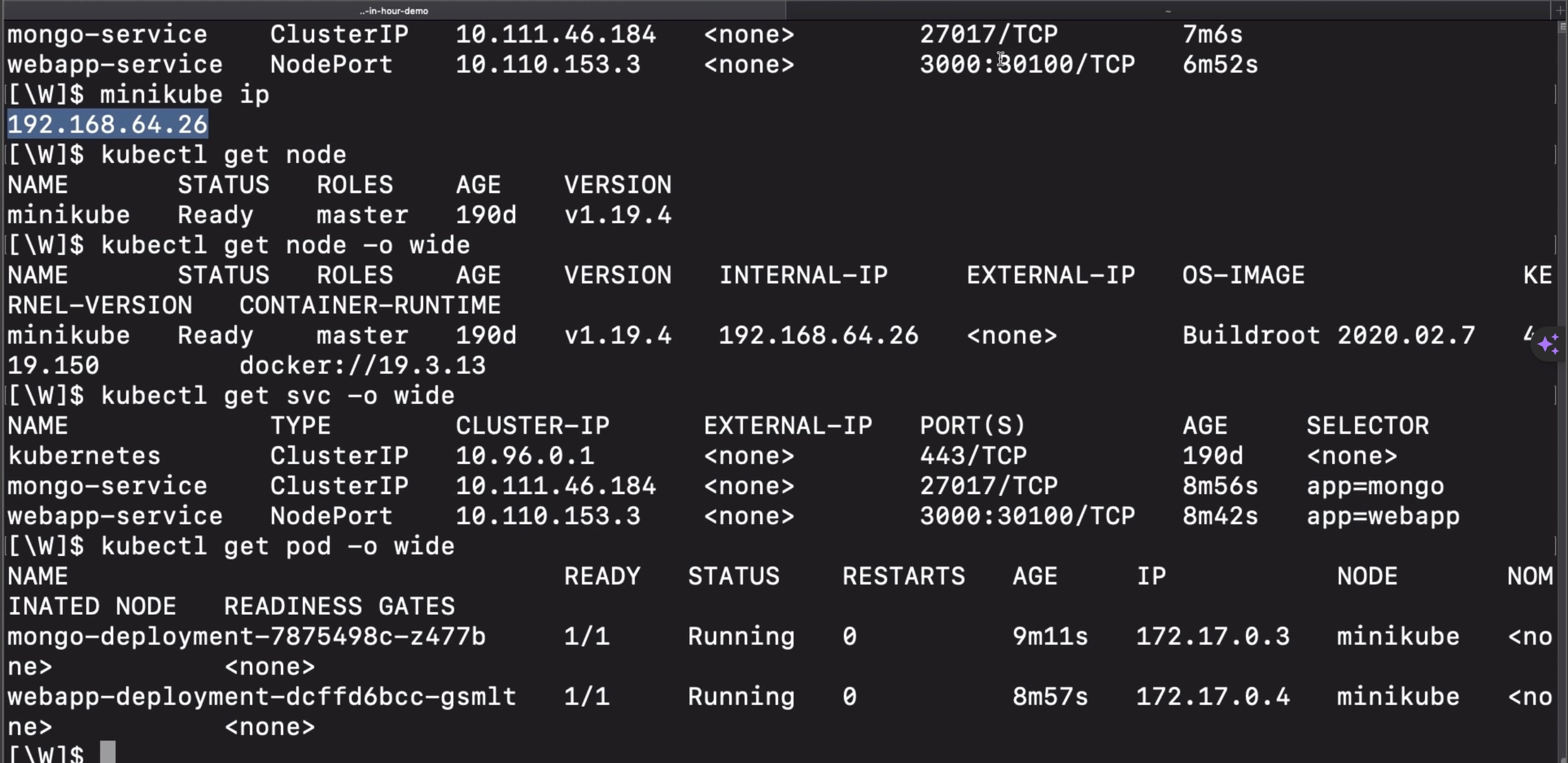

minikube ip

kubectl get node -o wide

more examples:

kubectl create deployment mynginx --image=nginx -n=pre
kubectl create deployment myapache --image=httpd -n=pro
kubectl create deployment mycaddy --image=caddy
kubectl create deployment mytomcat --image=tomcat

kubectl get deployment

kubectl create namespace pre
kubectl create namespace pro

get pods by service name



get pods logs by service name


kubectl describe pod service name

show the deployment descriptor of the pod

Creating deployment files

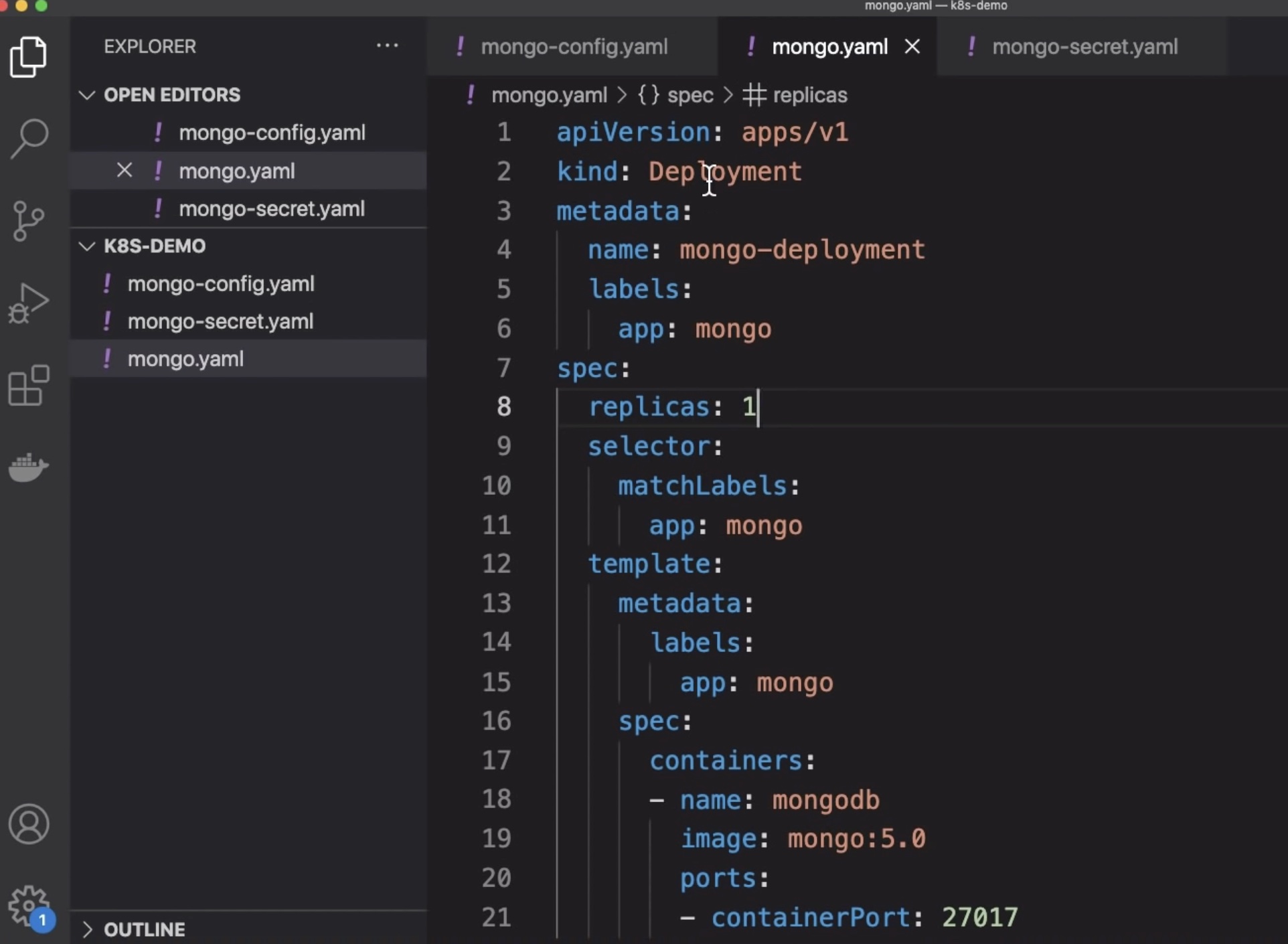

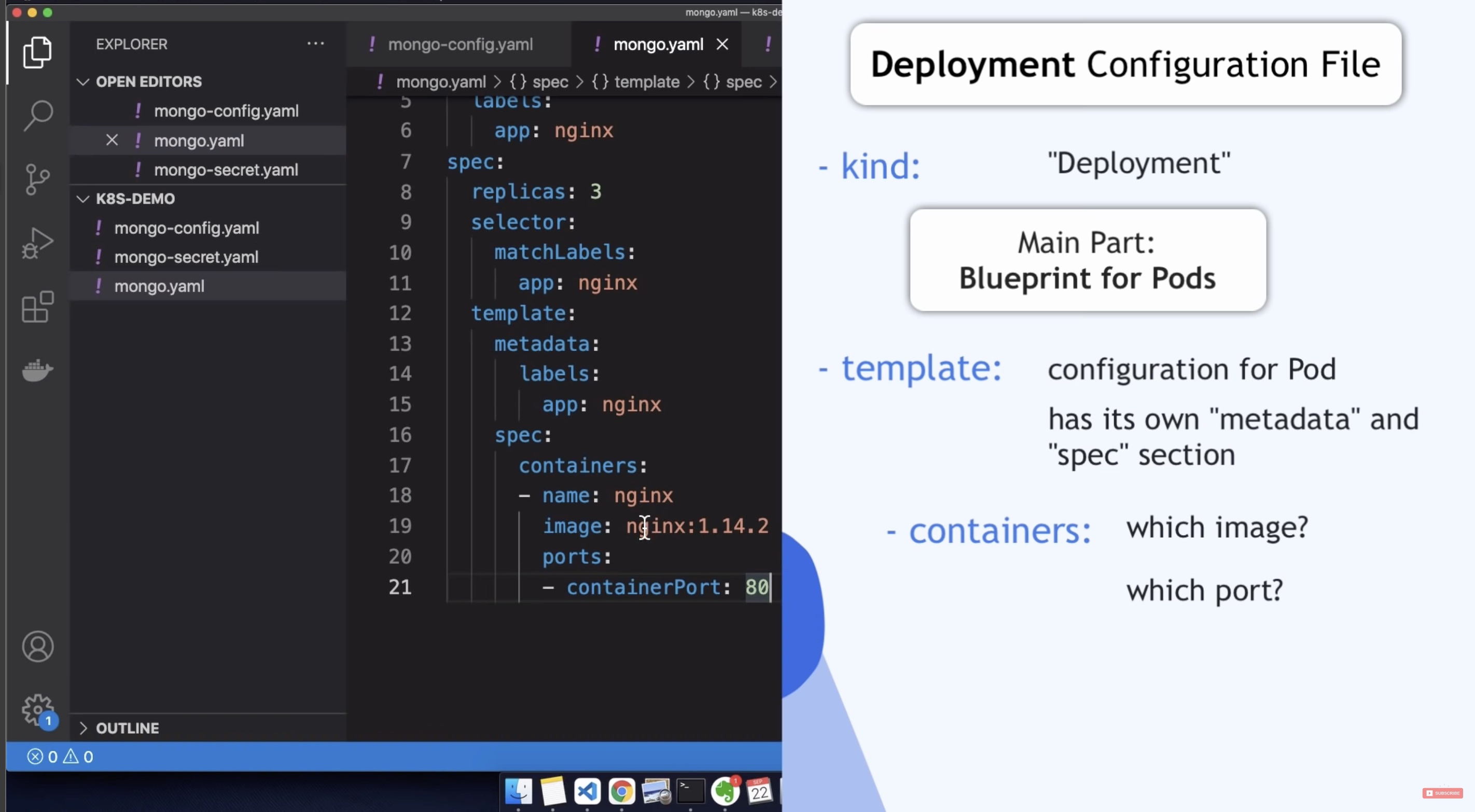

Deployment yaml



Every deployment file can have the deployment (https://kubernetes.io/docs/concepts/workloads/controllers/deployment/) and the service (https://kubernetes.io/docs/concepts/services-networking/service/). Every configuration can go in an isolate yaml, or you can add all splitting them by --- (You can have multiple YAML configurations within 1 file using ---)


  • replicas how many Pods you want to create?

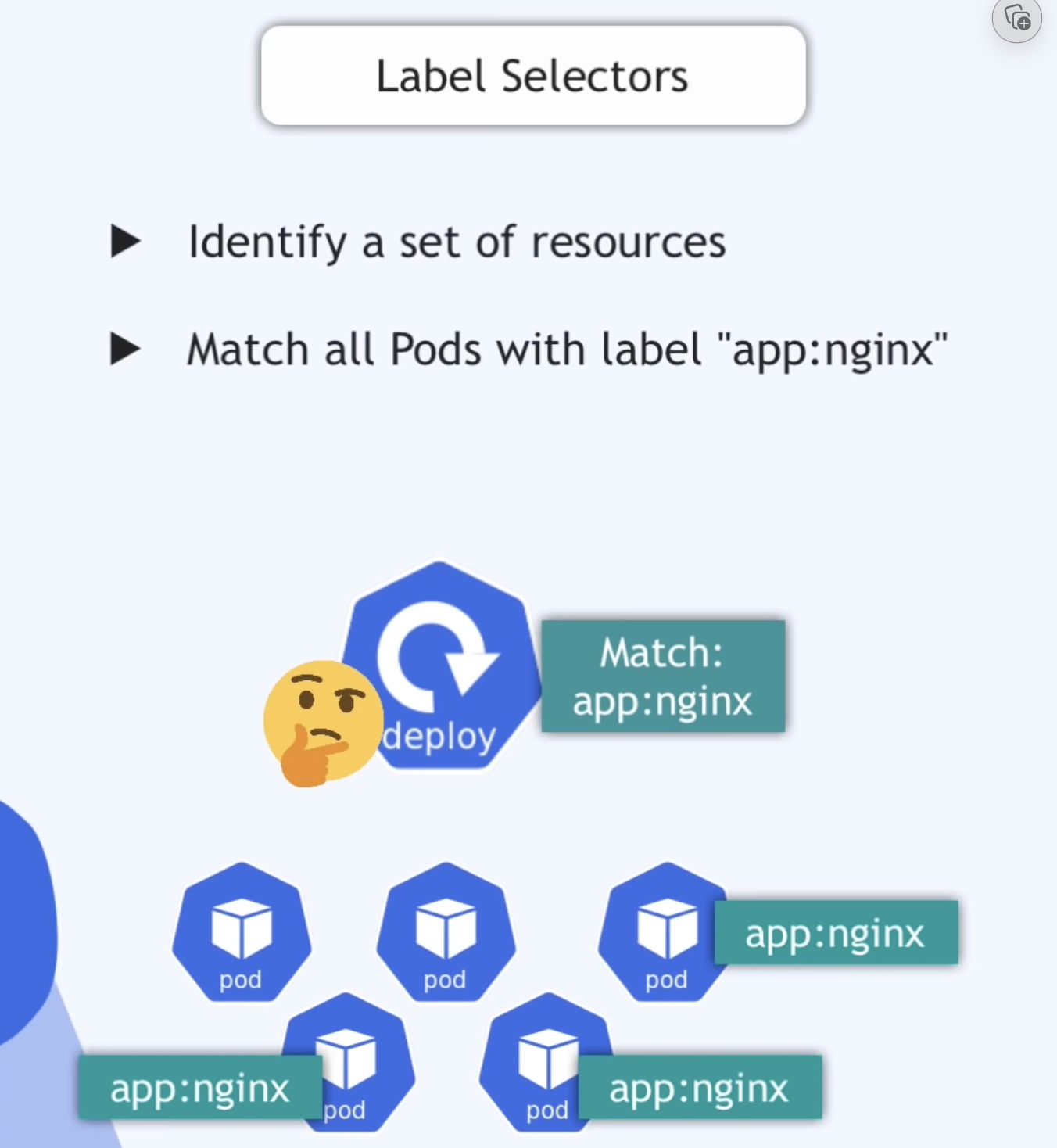

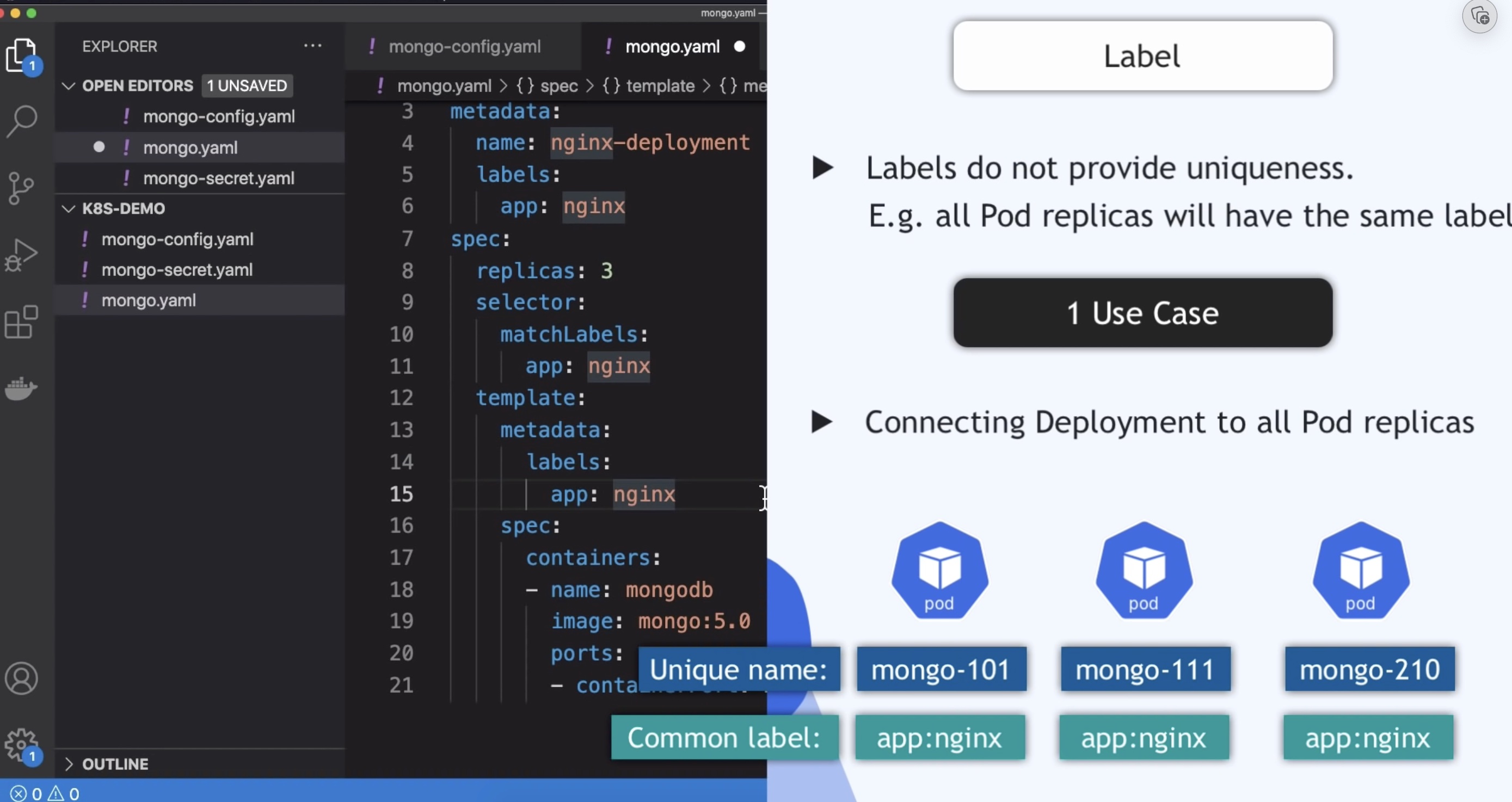

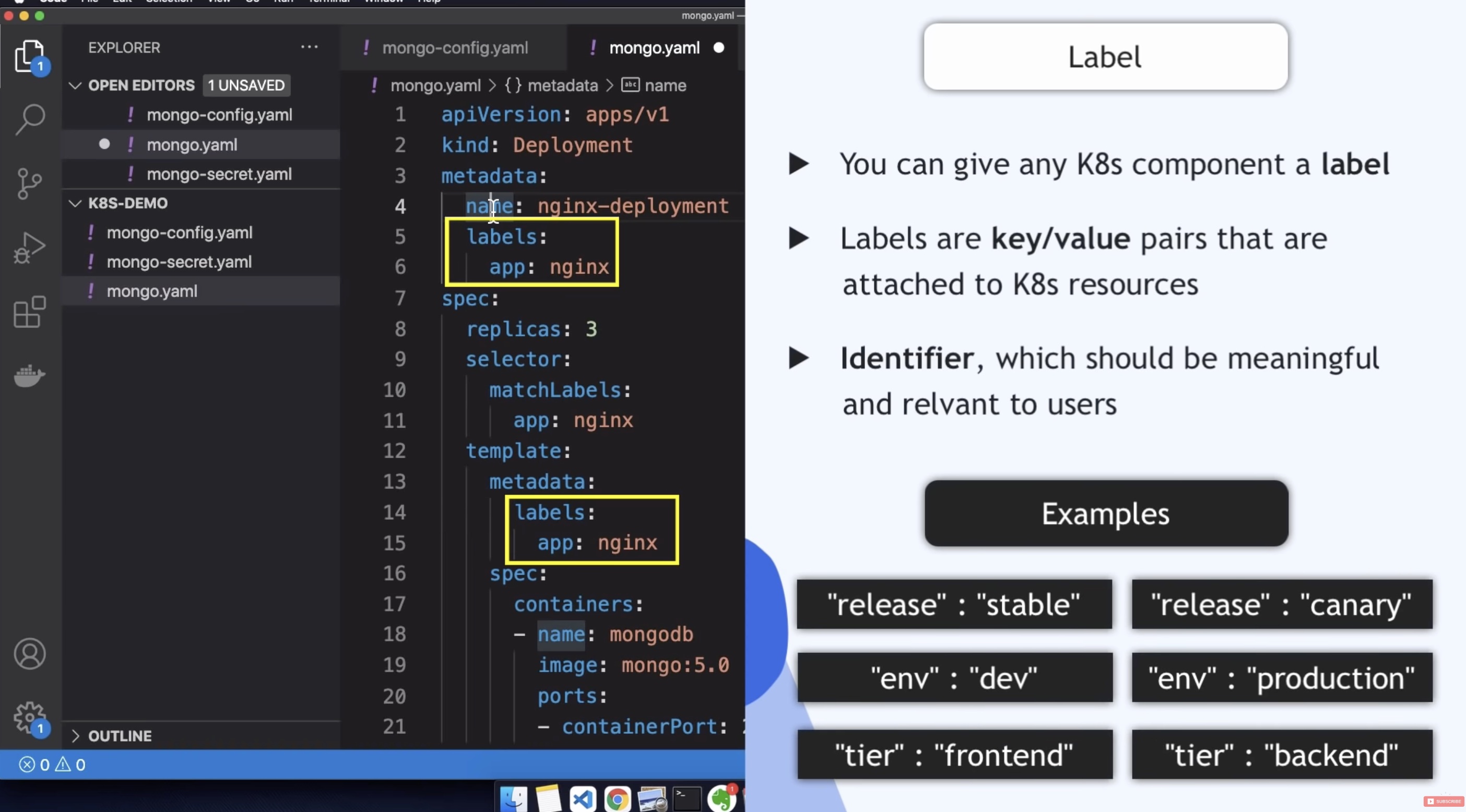

  • label how to identify to the pods (Which Pods belongs to Deployment? the label is in charge of that)
  • containerPort the port exposed by the docker container

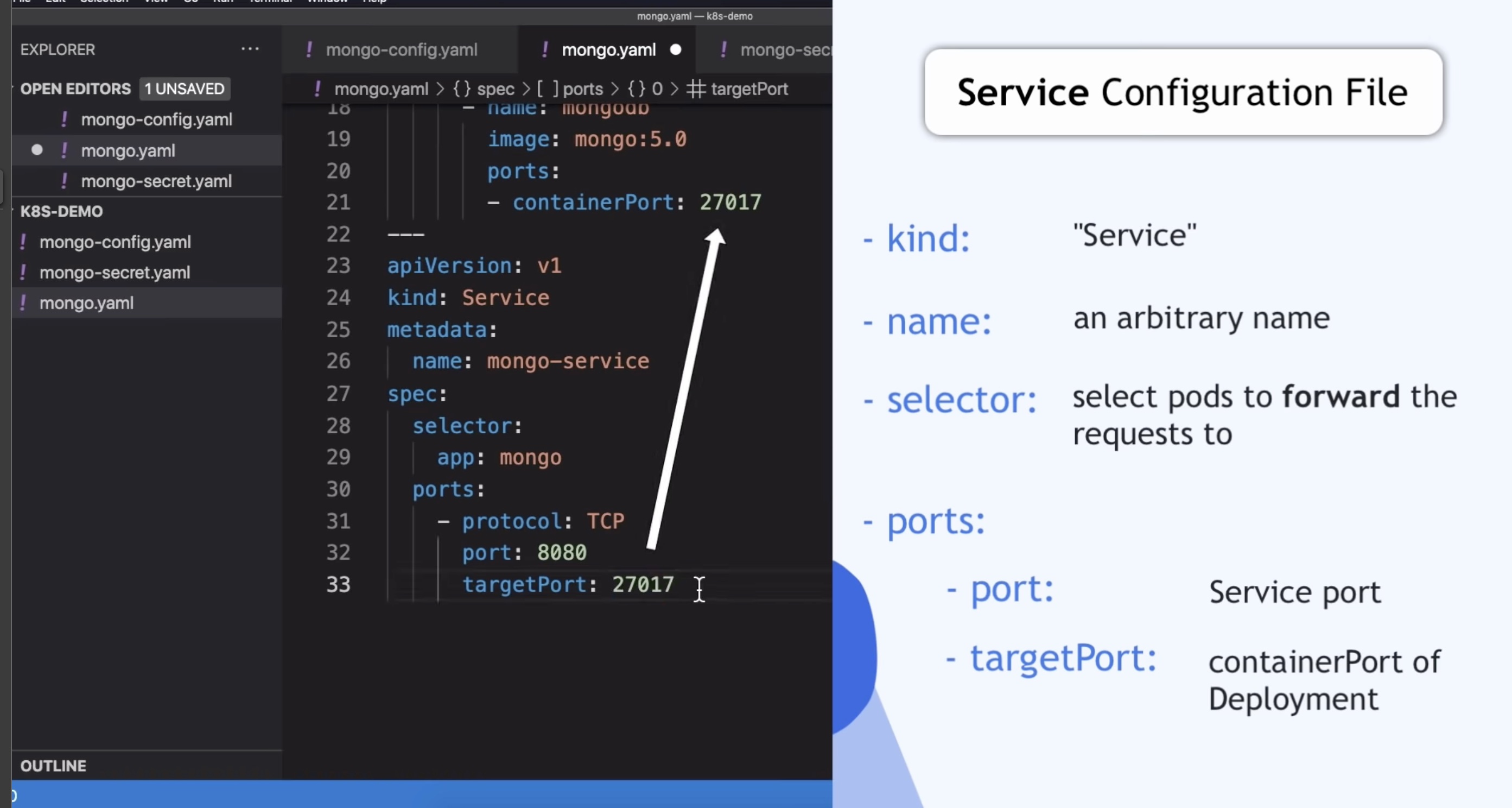

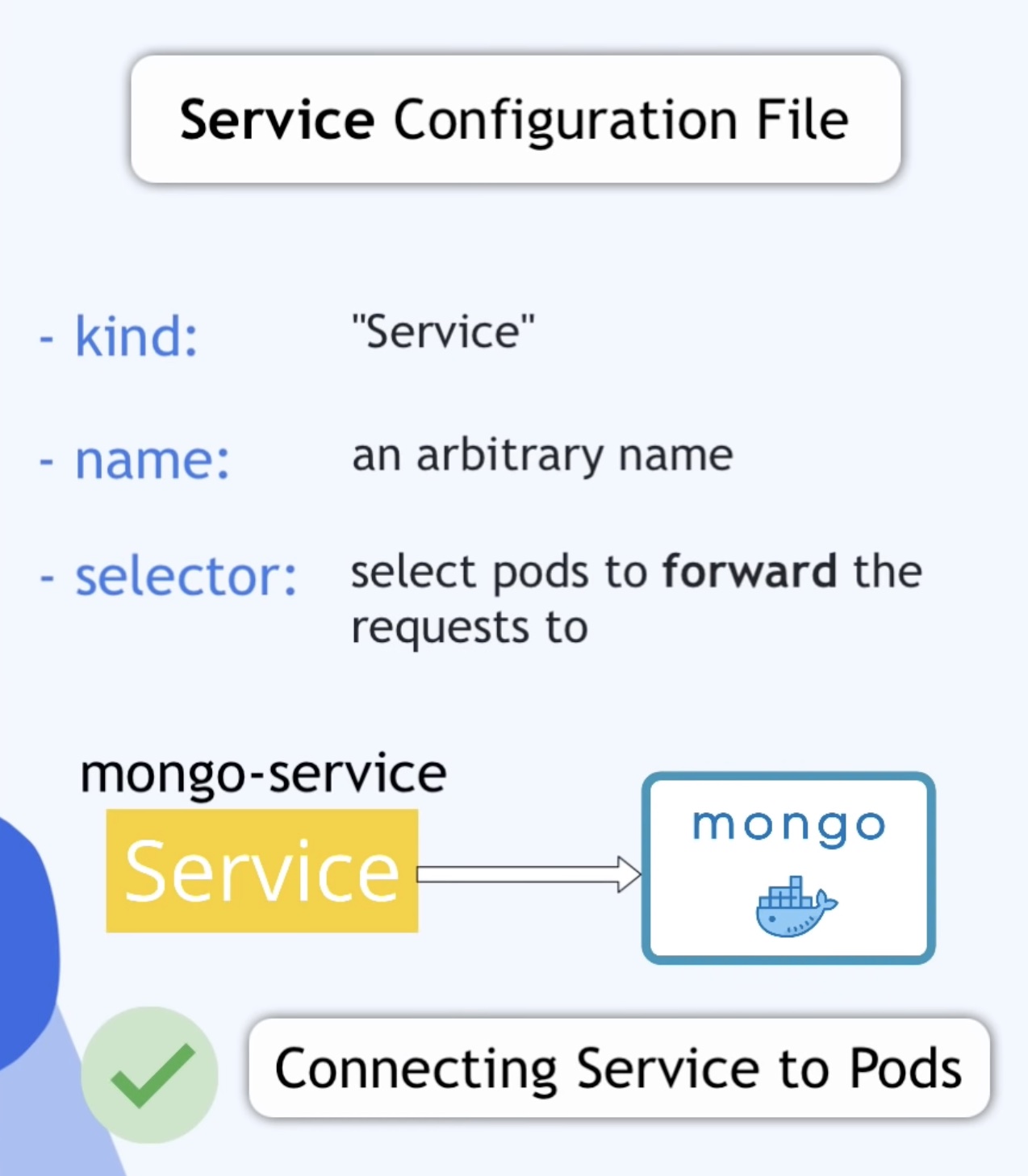

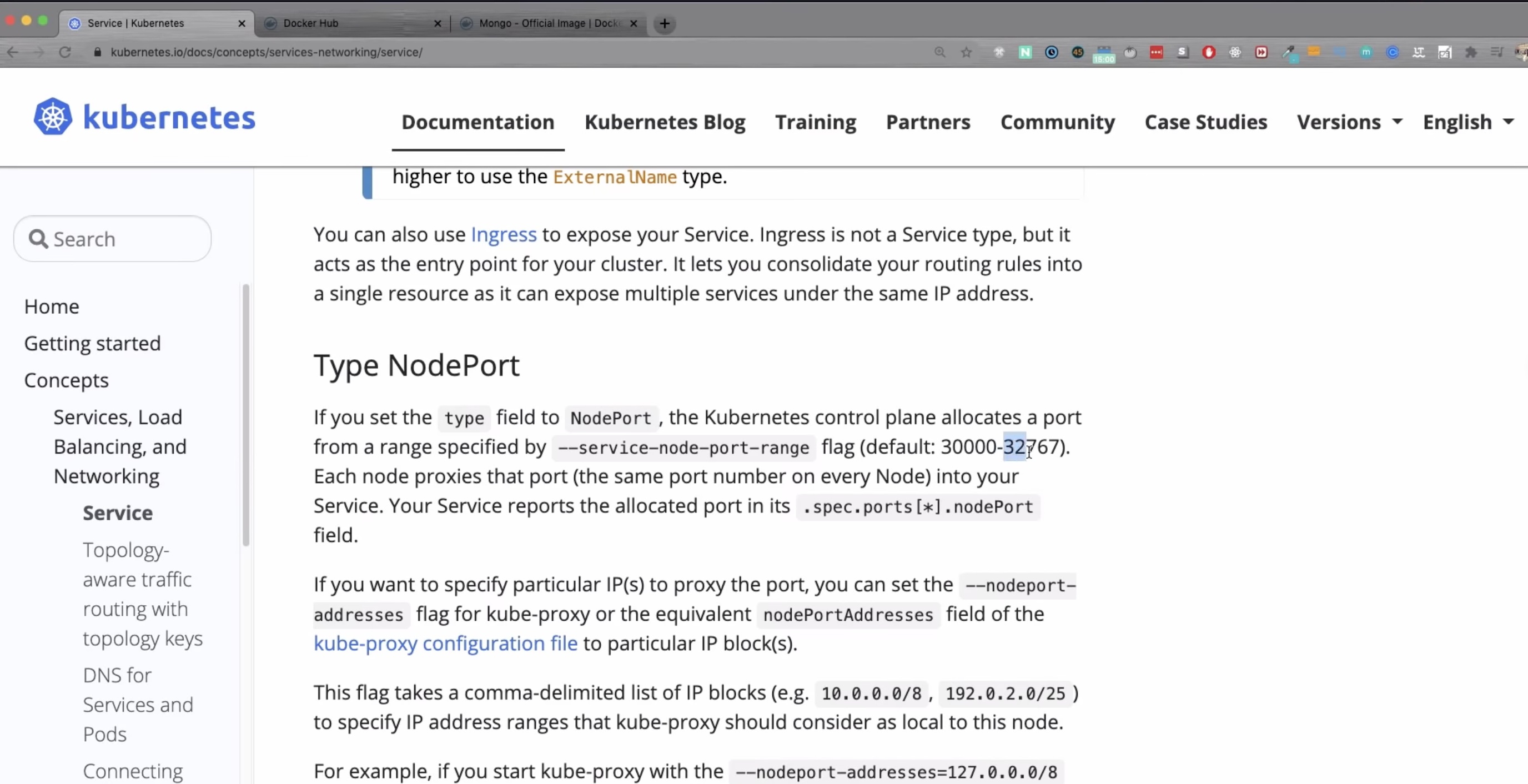

Service yaml



in the service part:

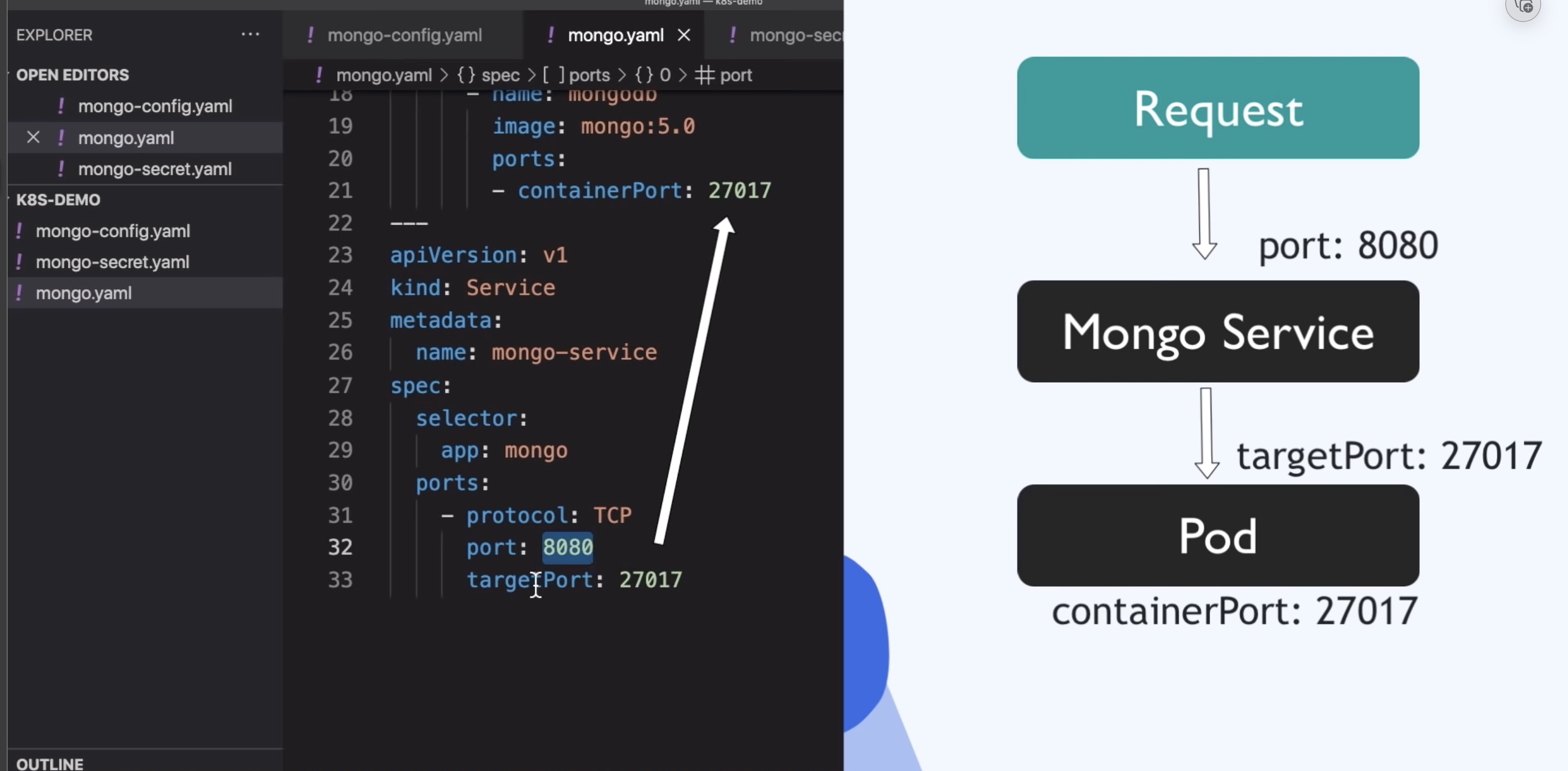

  • targetPort is the same of the containerPort on the deployment file.

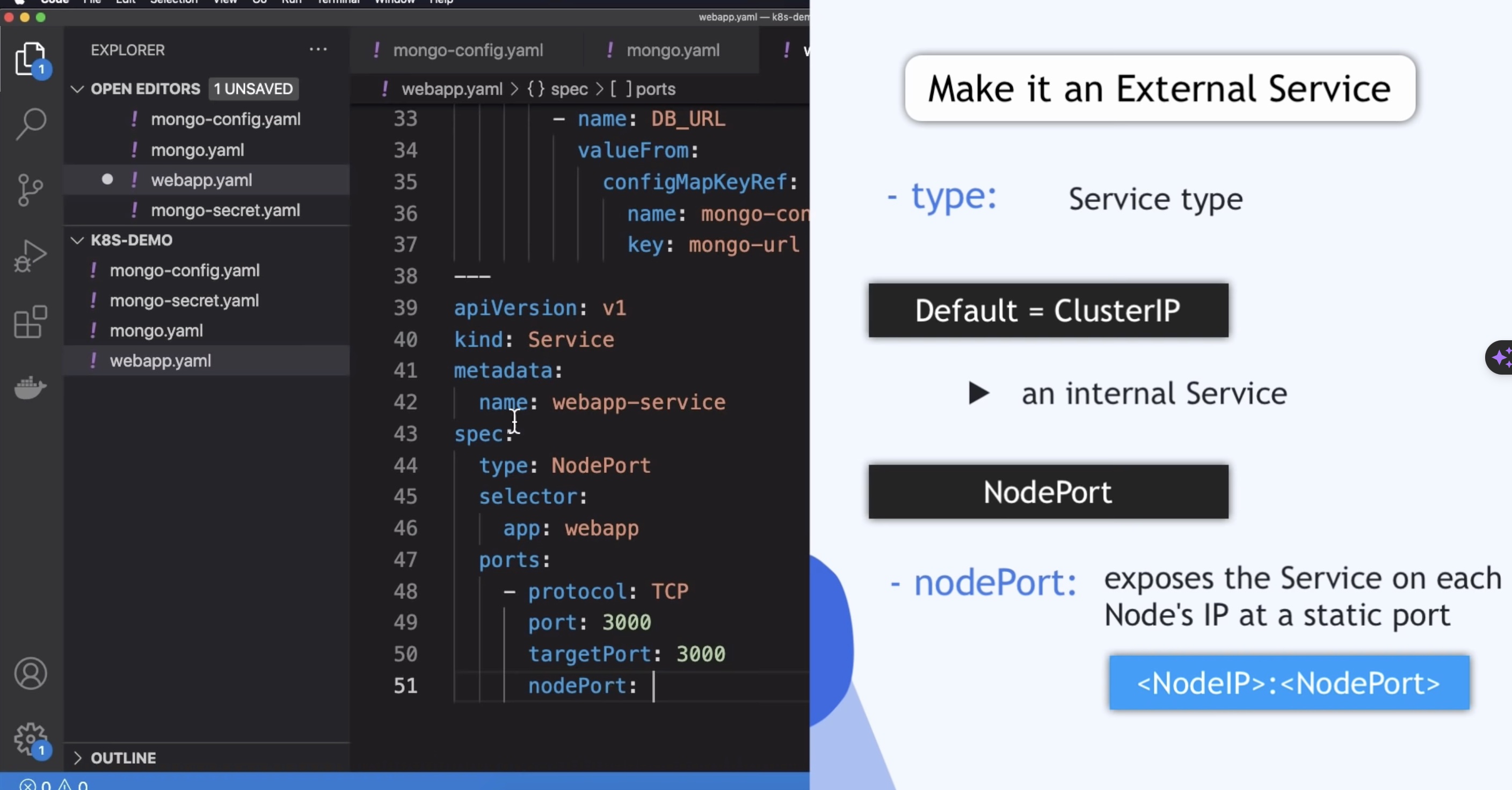

  • nodeport is the external exposed port

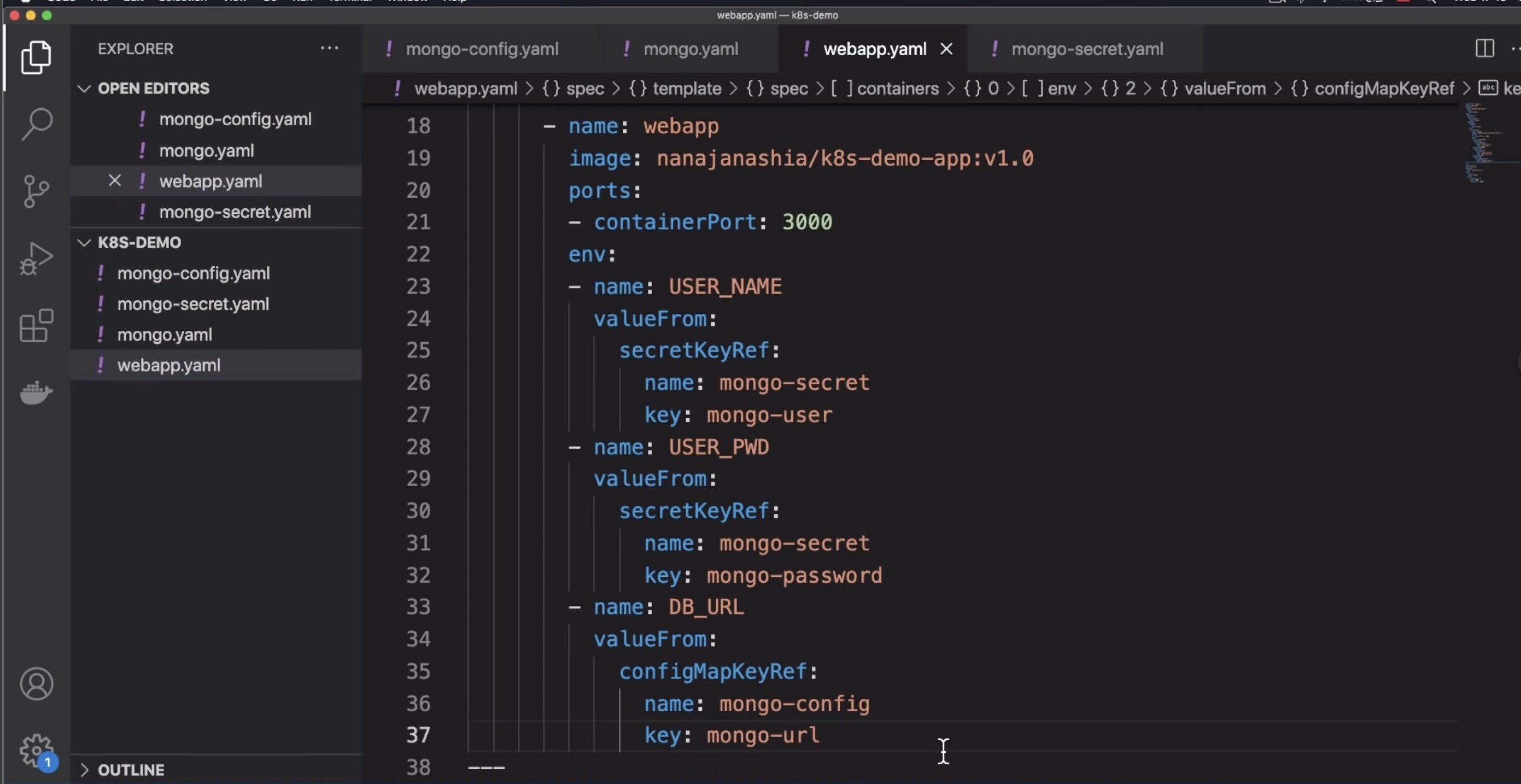

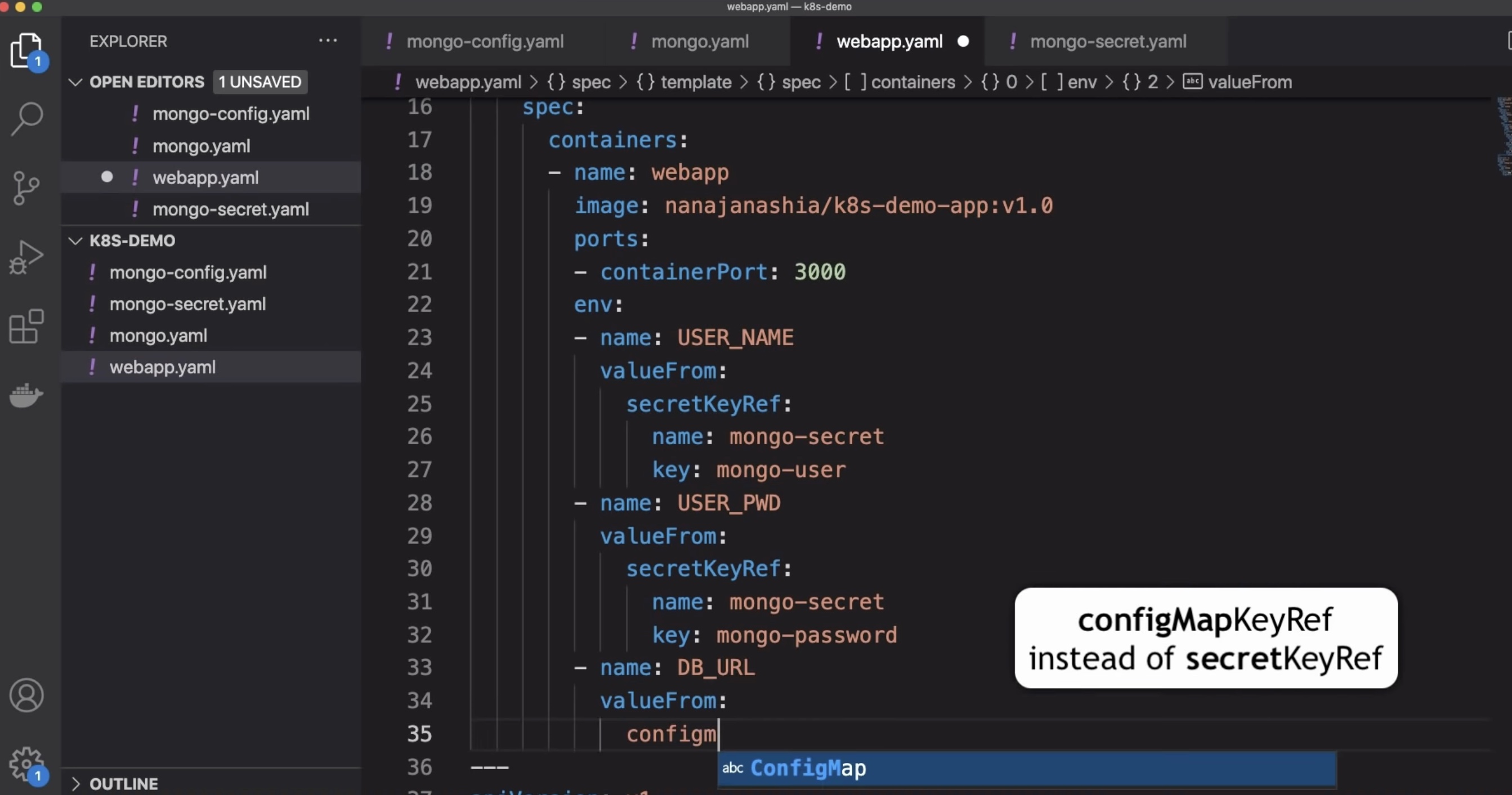

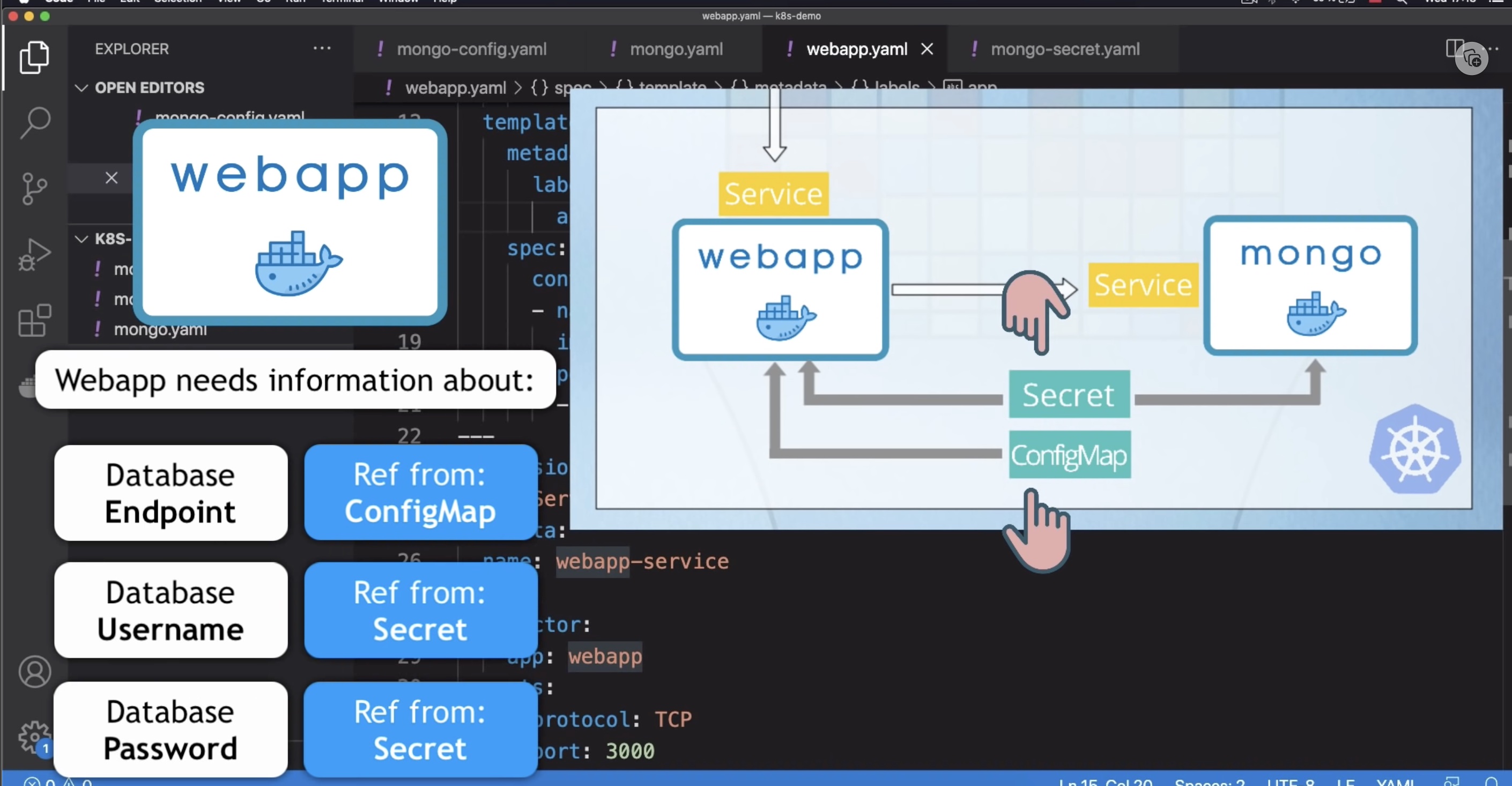

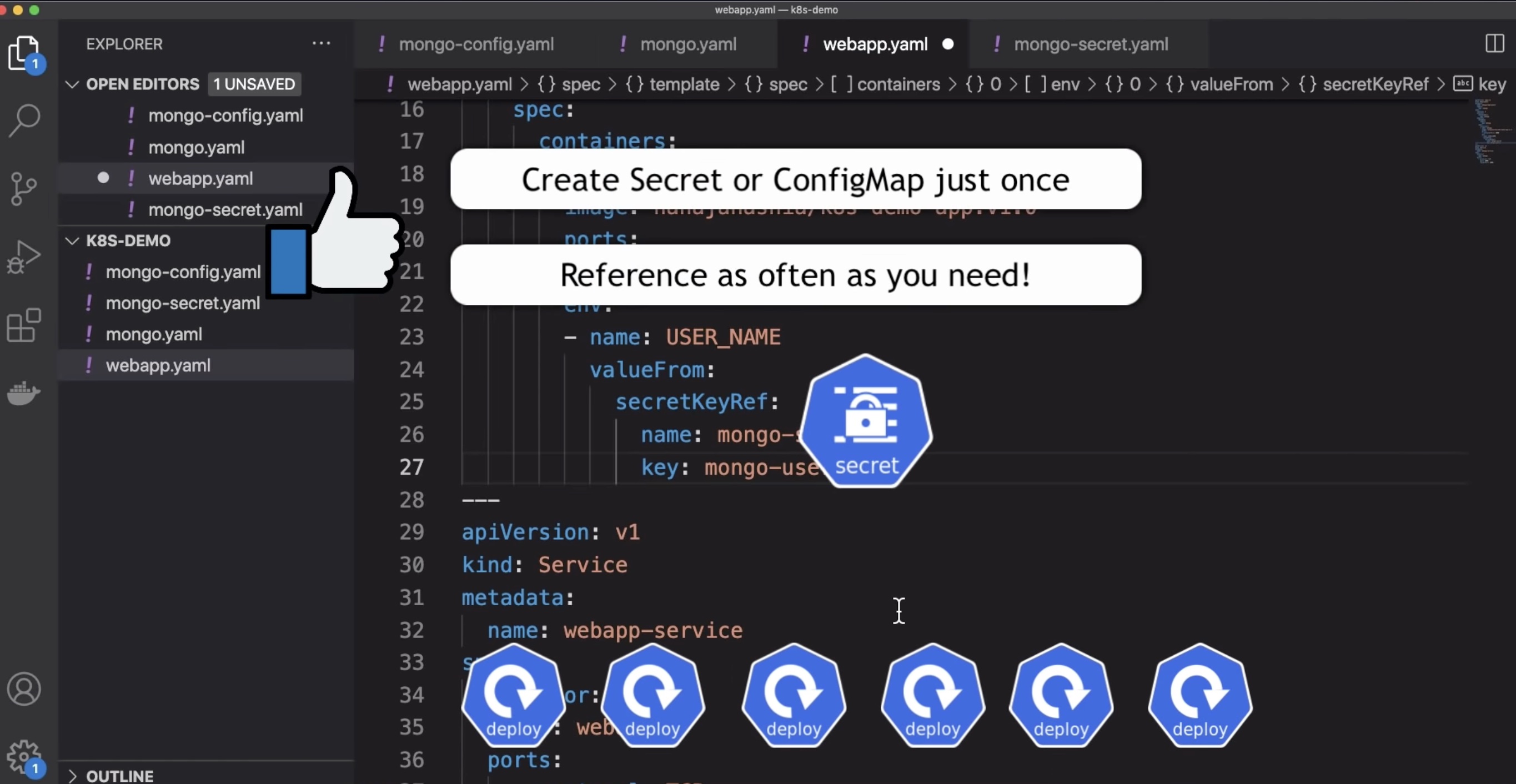

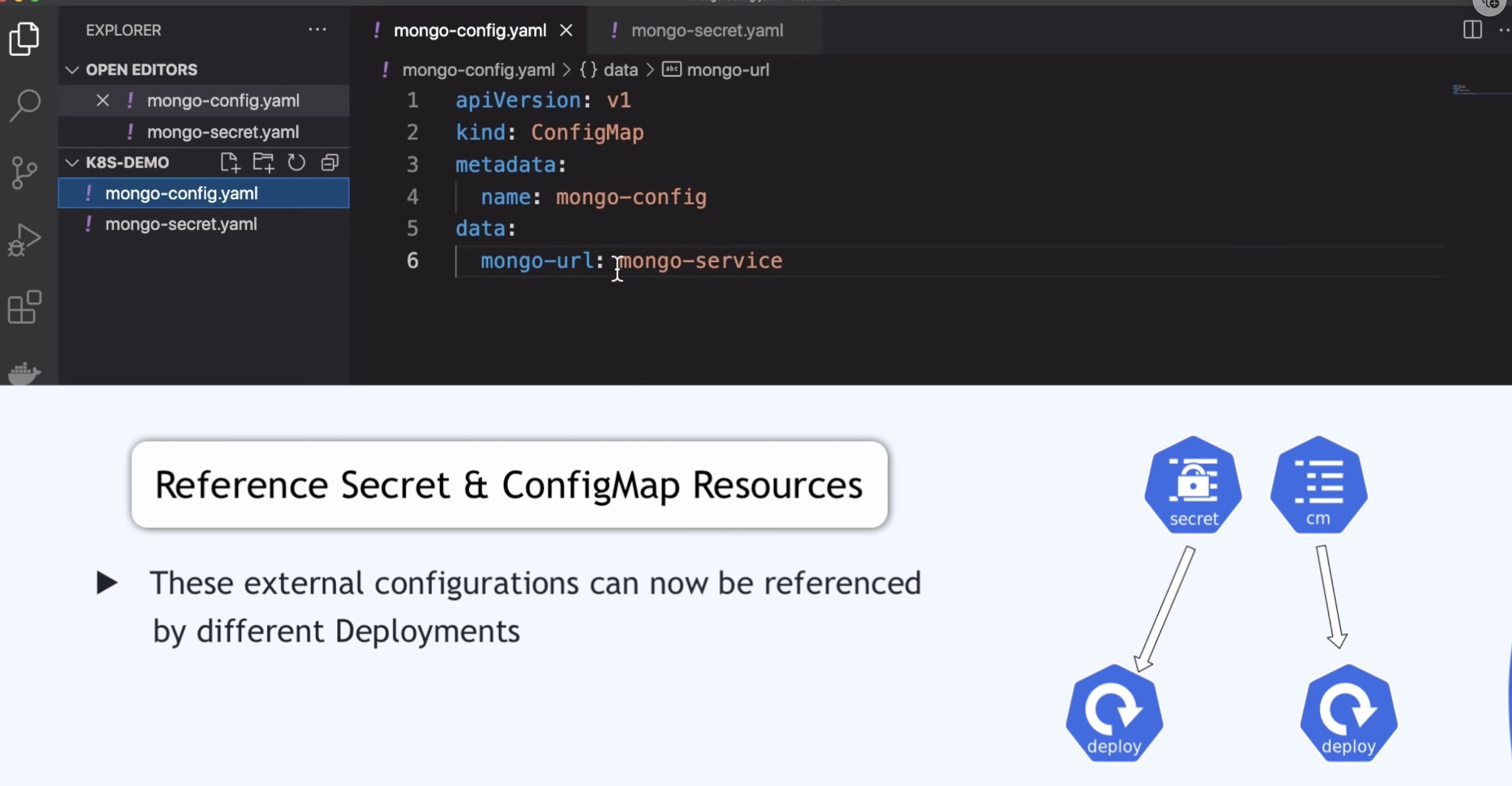

kubectl deployment: using config-map and secrets


  • selector: select pods to forward the requests to.

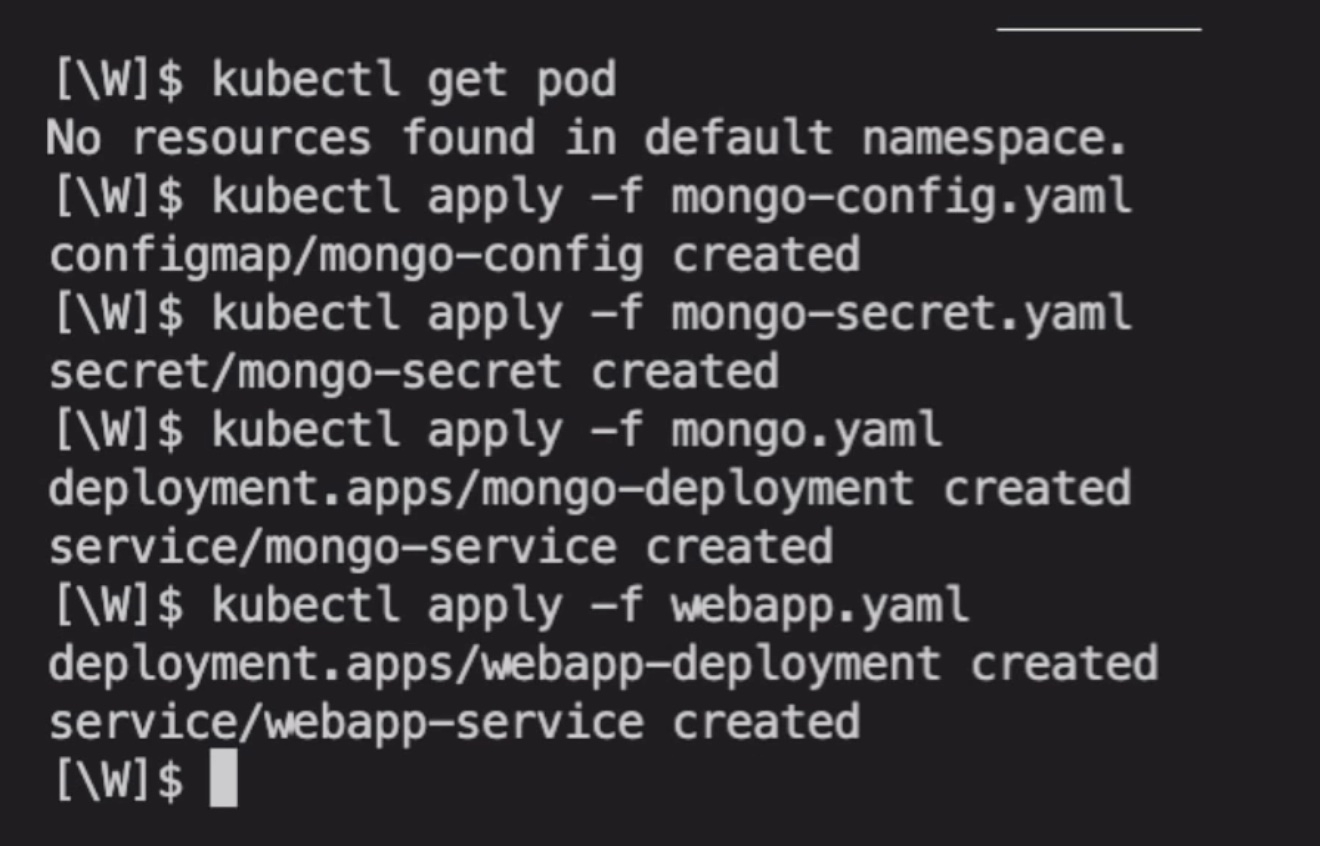

kubectl apply deployment

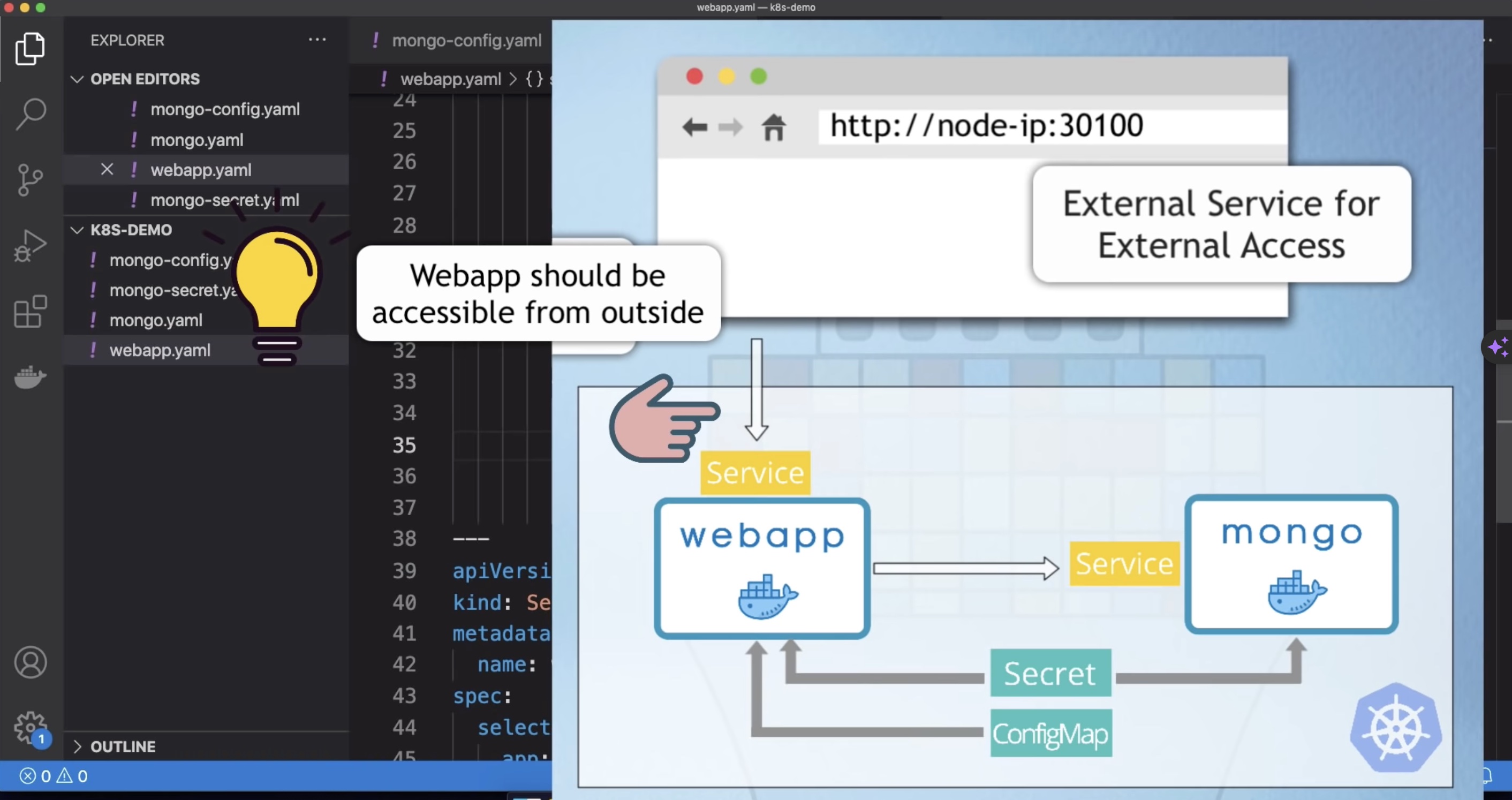

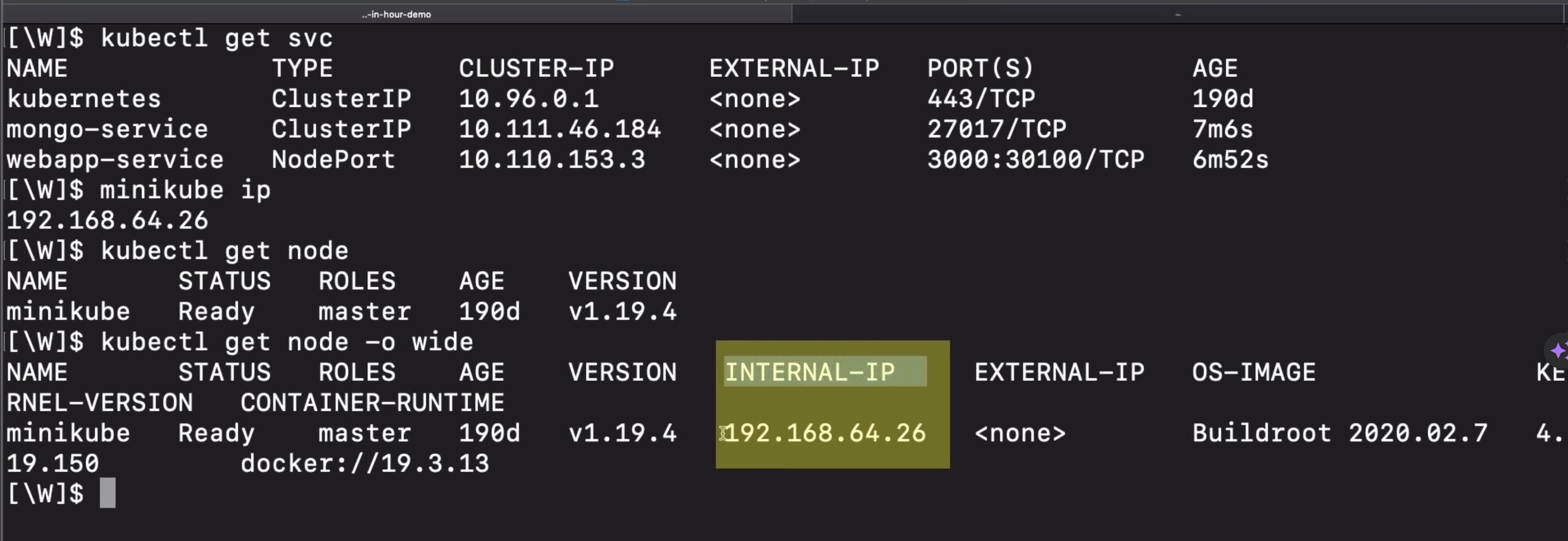

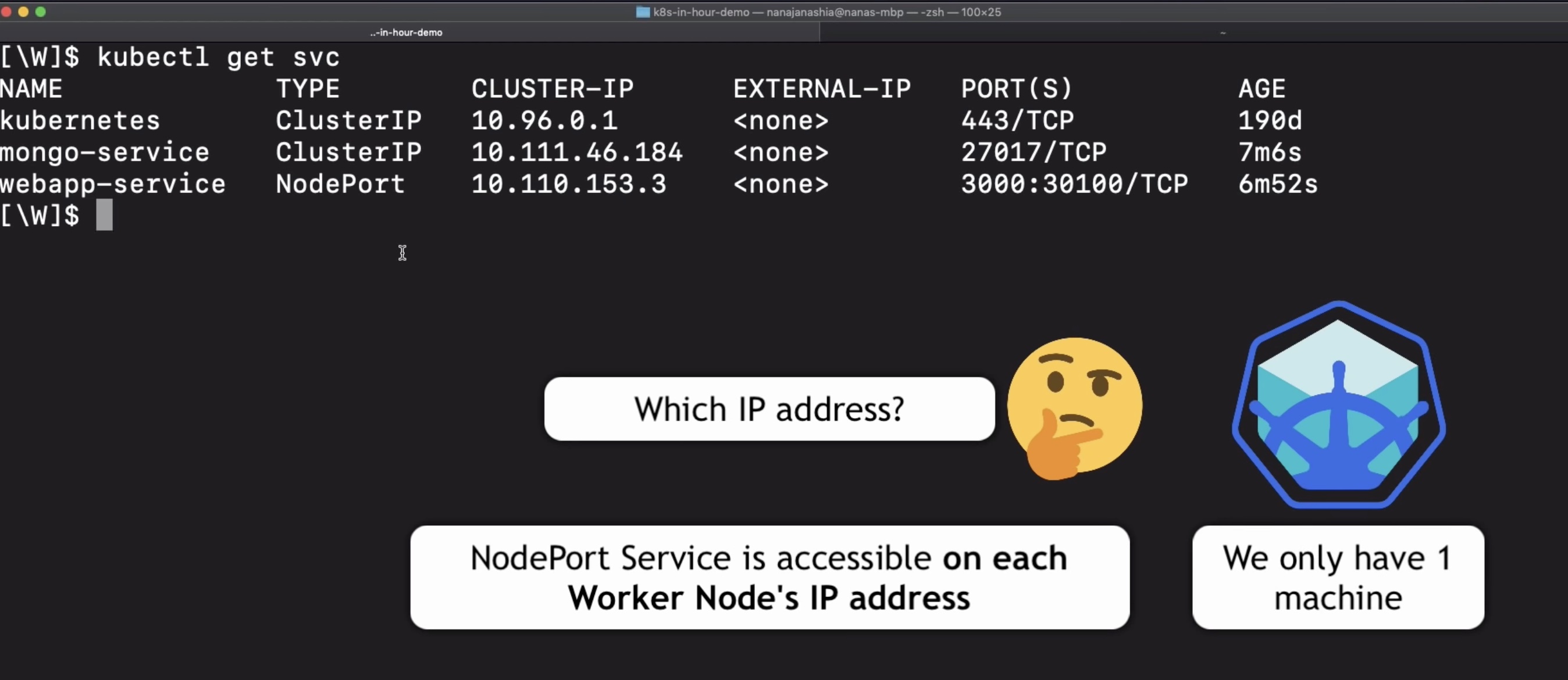

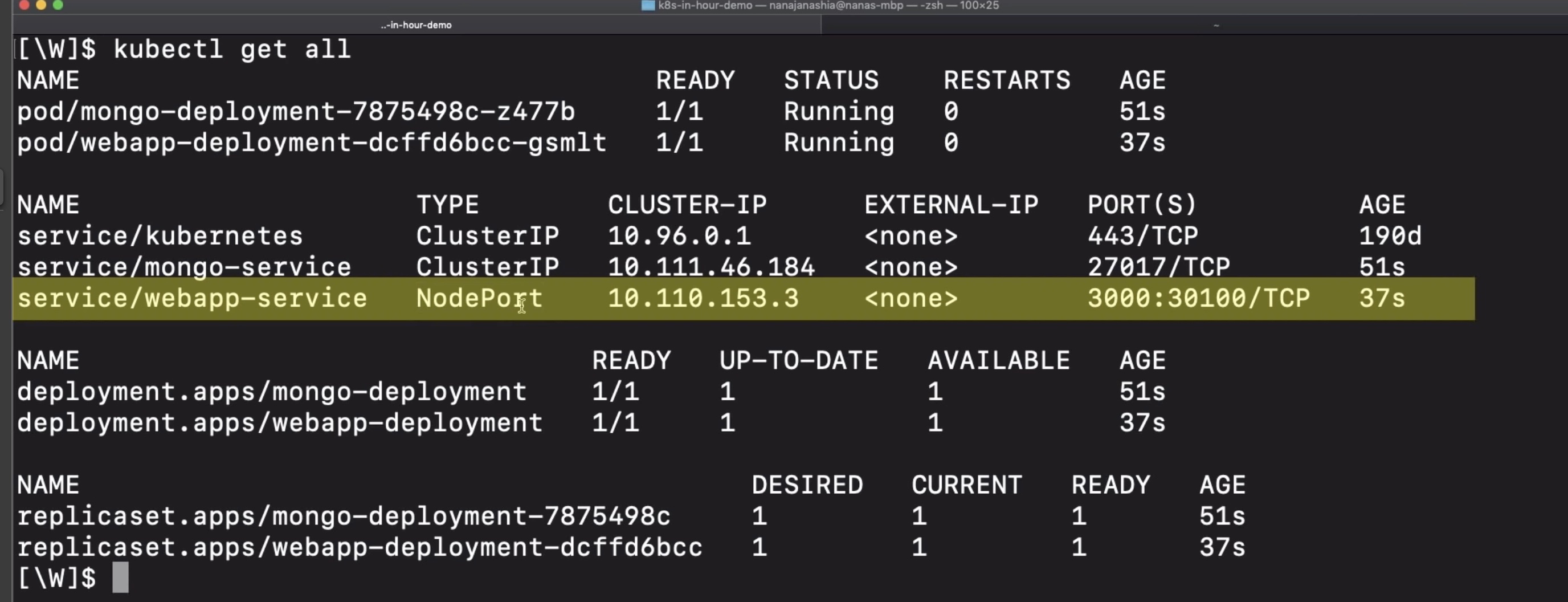

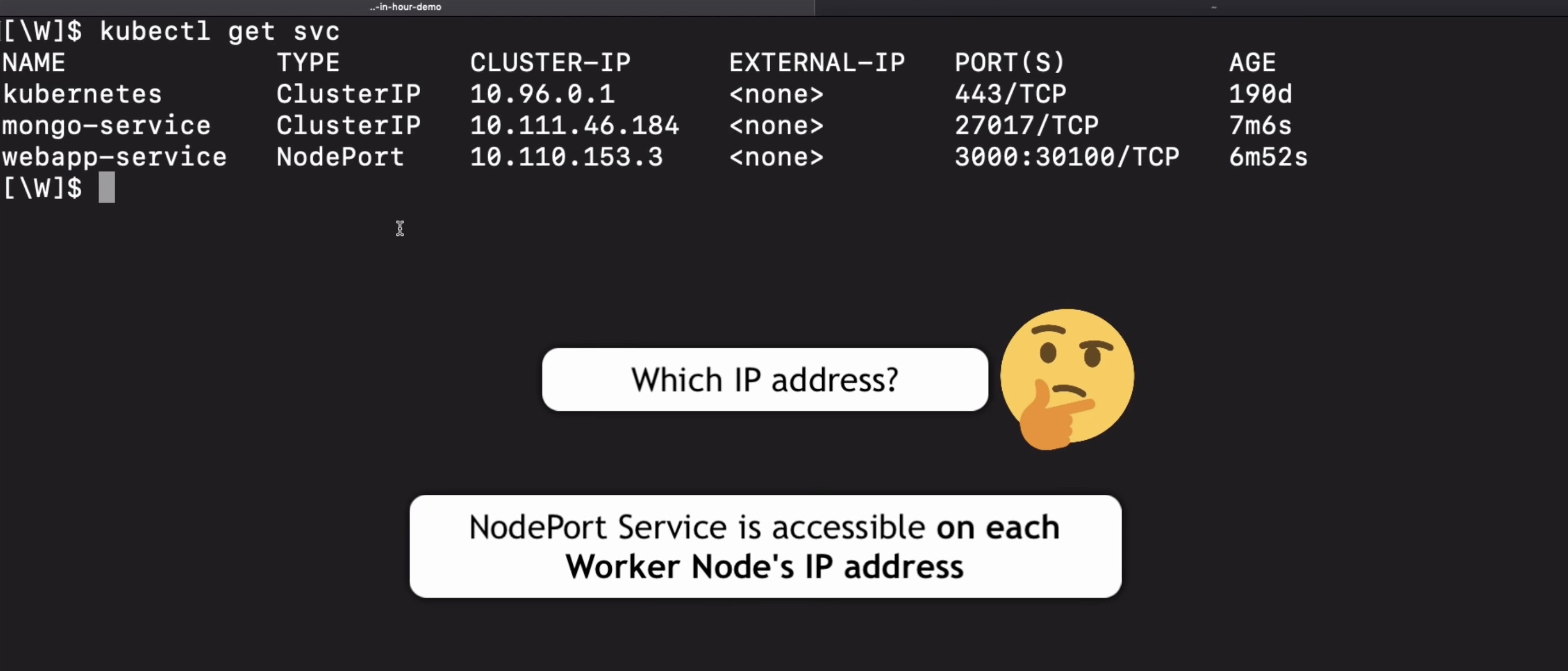

exposing external ip



The ip is the cluster ip, is the ip of minikube in this case.

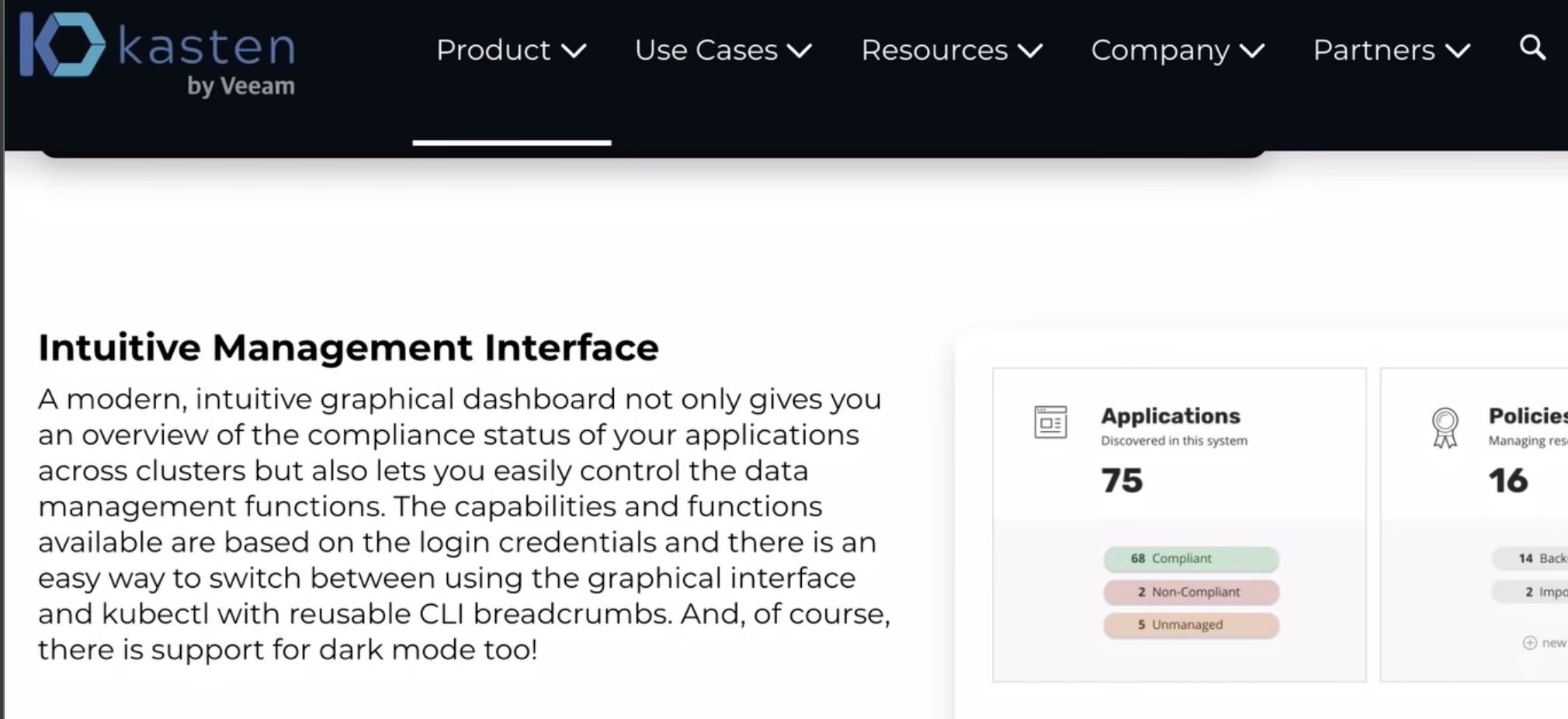

kaster k8 provider

https://www.kasten.io/product/

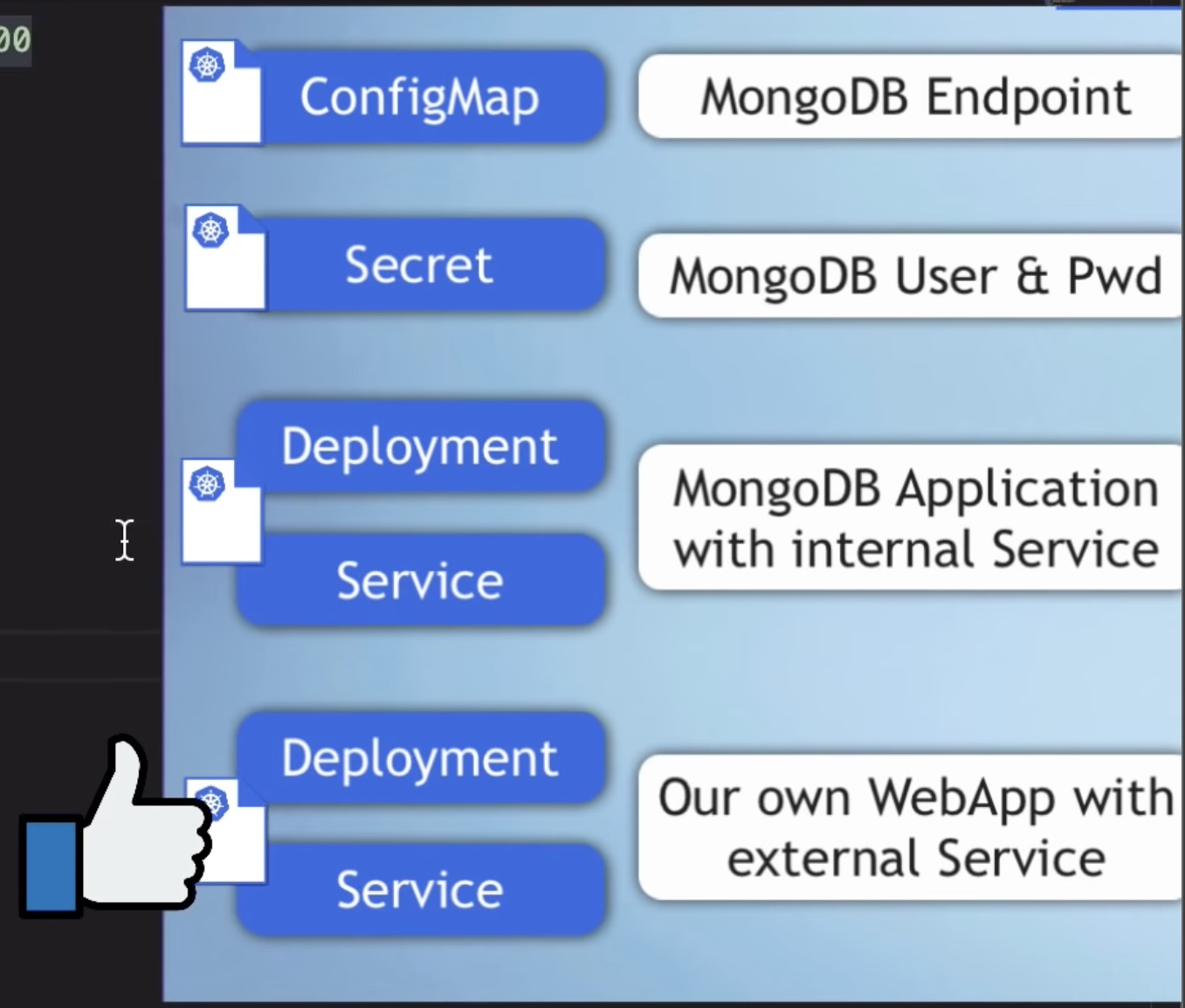

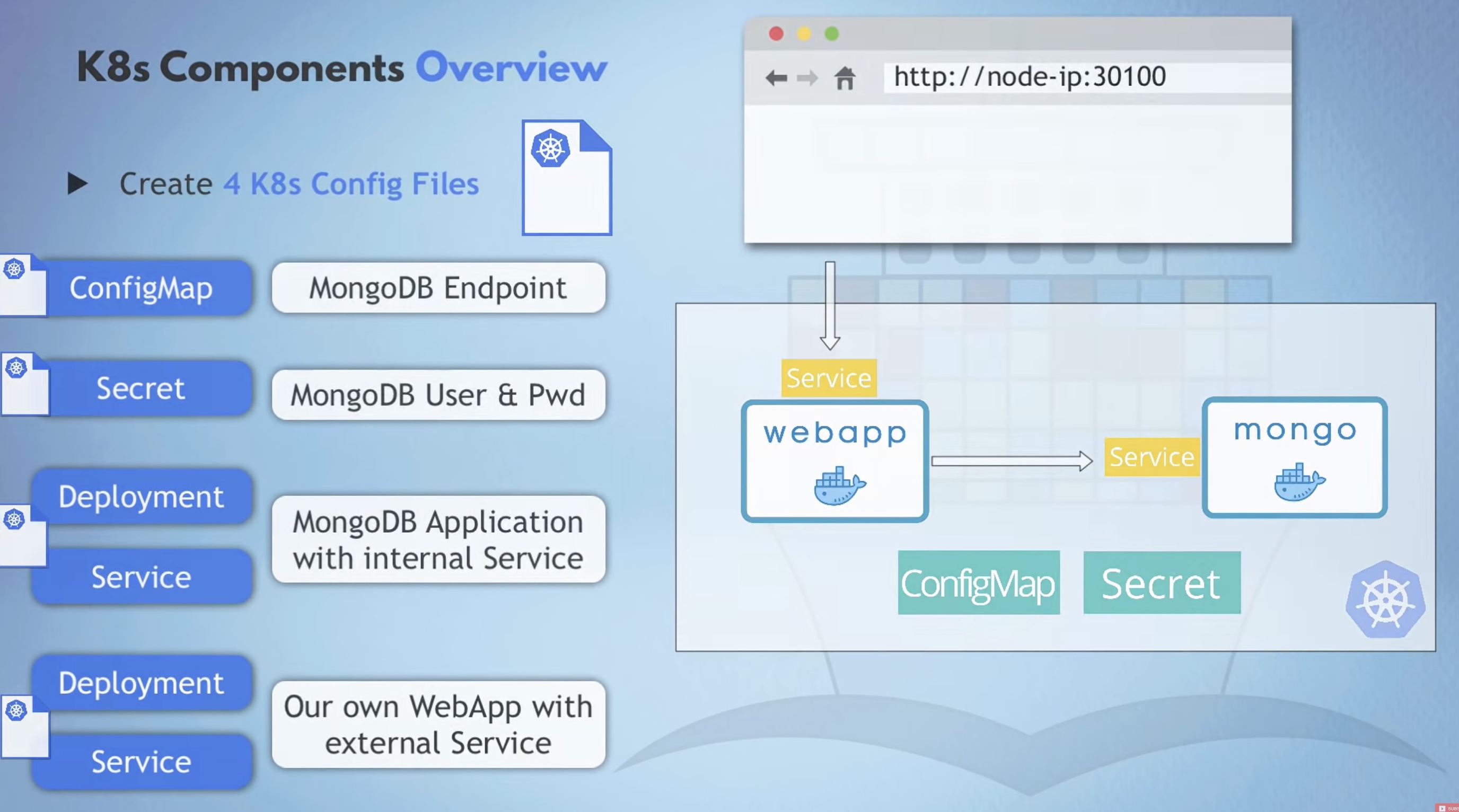

Example files

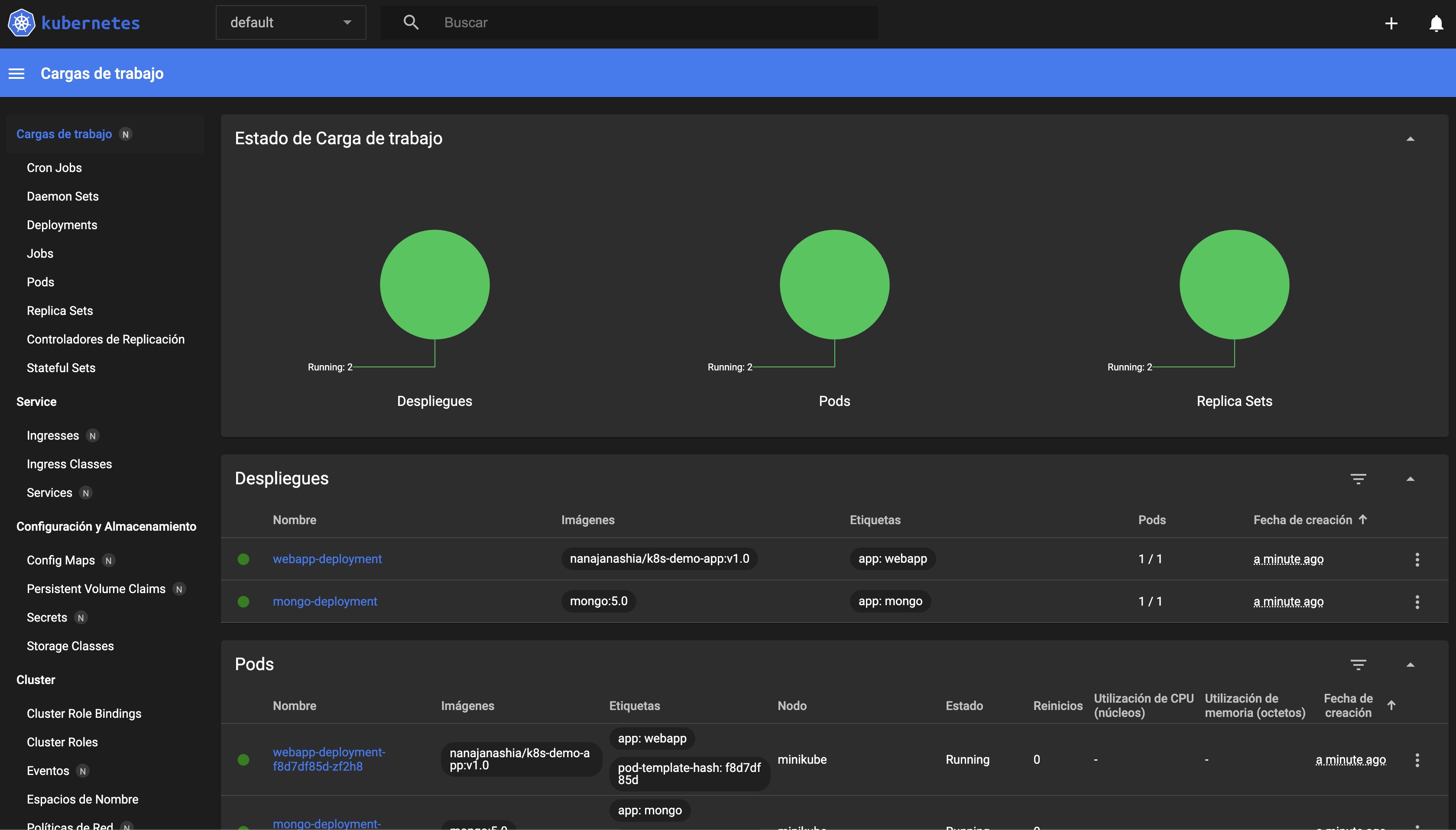

minikube dashboard


Execute the next commands to start the dashboard, and to deploy the example files:

minikube delete --all

minikube dashboard

kubectl apply -f mongo-config.yaml
kubectl apply -f mongo-secret.yaml
kubectl apply -f mongo.yaml
kubectl apply -f webapp.yaml

kubectl rollout status deployment/mongo-deployment

kubectl get rs

kubectl scale --current-replicas=3 --replicas=1 deployment/nginx-deployment

kubectl get configmaps
kubectl describe configmaps any-config-map

kubectl get secret
kubectl describe secret any-secret

kubectl get svc
kubectl describe svc any-services

kubectl get all
minikube kubectl -- get configmap
minikube kubectl -- get secret
kubectl get pods -o wide
kubectl logs webapp-deployment-f8d7df85d-zf2h8
kubectl logs webapp-deployment-f8d7df85d-zf2h8 -f
kubectl get services -o wide
minikube ip
kubectl get node -o wide

curl -X GET 'http://192.168.49.2:30100'

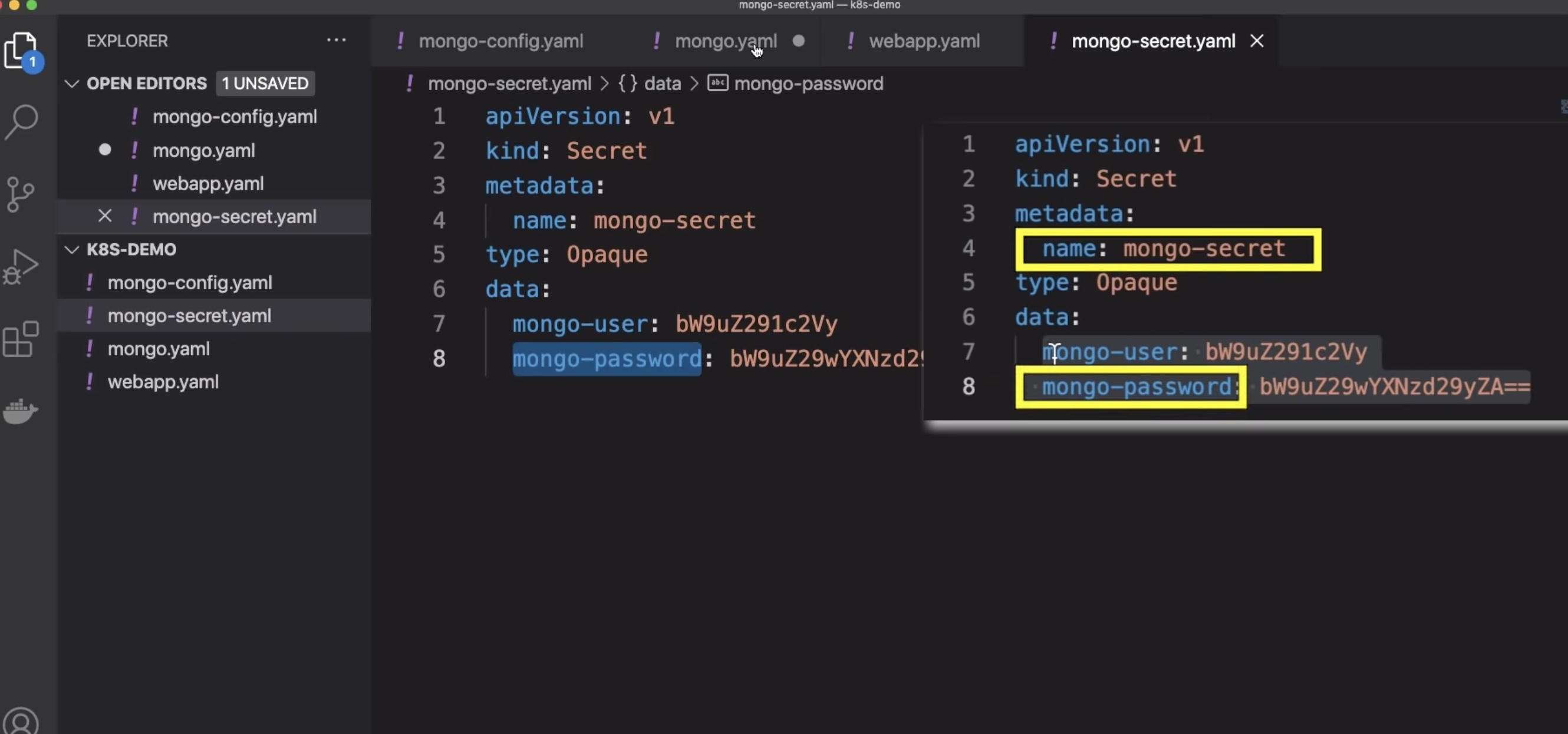

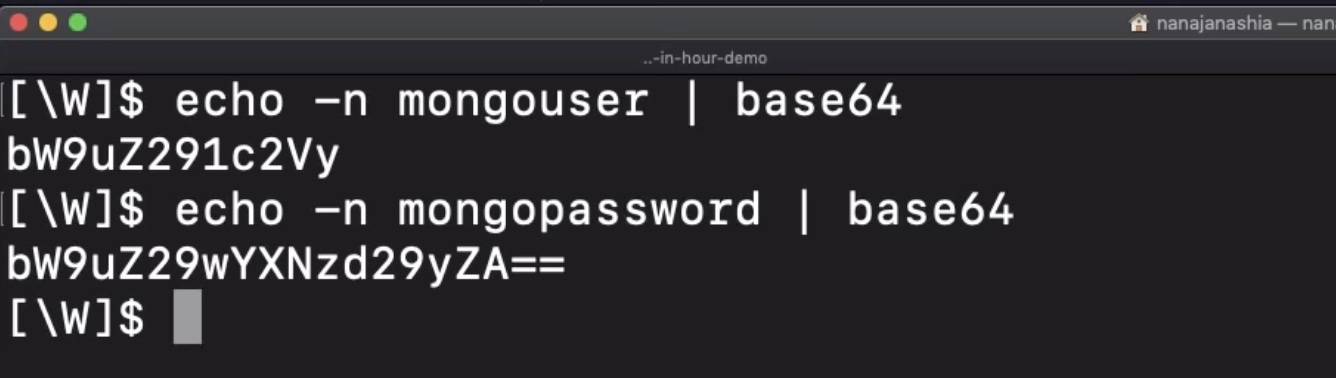

mongo-secret.yaml

apiVersion: v1
kind: Secret
metadata:
  name: mongo-secret
type: Opaque
data:
  mongo-user: bW9uZ291c2Vy
  mongo-password: bW9uZ29wYXNzd29yZA==

mongo-config.yaml

apiVersion: v1
kind: ConfigMap
metadata:
  name: mongo-config
data:
  mongo-url: mongo-service

mongo.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: mongo-deployment
  labels:
    app: mongo
spec:
  replicas: 1
  selector:
    matchLabels:
      app: mongo
  template:
    metadata:
      labels:
        app: mongo
    spec:
      containers:
      - name: mongodb
        image: mongo:5.0
        ports:
        - containerPort: 27017
        env:
        - name: MONGO_INITDB_ROOT_USERNAME
          valueFrom:
            secretKeyRef:
              name: mongo-secret
              key: mongo-user
        - name: MONGO_INITDB_ROOT_PASSWORD
          valueFrom:
            secretKeyRef:
              name: mongo-secret
              key: mongo-password
---
apiVersion: v1
kind: Service
metadata:
  name: mongo-service
spec:
  selector:
    app: mongo
  ports:
    - protocol: TCP
      port: 27017
      targetPort: 27017

webapp.yaml

apiVersion: apps/v1
kind: Deployment
metadata:
  name: webapp-deployment
  labels:
    app: webapp
spec:
  replicas: 1
  selector:
    matchLabels:
      app: webapp
  template:
    metadata:
      labels:
        app: webapp
    spec:
      containers:
      - name: webapp
        image: nanajanashia/k8s-demo-app:v1.0
        ports:
        - containerPort: 3000
        env:
        - name: USER_NAME
          valueFrom:
            secretKeyRef:
              name: mongo-secret
              key: mongo-user
        - name: USER_PWD
          valueFrom:
            secretKeyRef:
              name: mongo-secret
              key: mongo-password
        - name: DB_URL
          valueFrom:
            configMapKeyRef:
              name: mongo-config
              key: mongo-url
---
apiVersion: v1
kind: Service
metadata:
  name: webapp-service
spec:
  type: NodePort
  selector:
    app: webapp
  ports:
    - protocol: TCP
      port: 3000
      targetPort: 3000
      nodePort: 30100

another example

minikube delete --all

minikube start

minikube dashboard

kubectl apply -f https://k8s.io/examples/controllers/nginx-deployment.yaml

kubectl apply -f ./deploy/nginx-deployment.yaml


# two steps command: first connect to the pod
kubectl exec -it nginx-deployment-57c4449555-5frhd -c ping -- /bin/sh

# second command: inside the pod execute
wget -O- http://localhost:80
## or
curl  http://localhost:80


kubectl get svc -o wide

kubectl rollout status deployment/nginx-deployment

kubectl get all

###  update image and deploy
kubectl set image deployment/nginx-deployment nginx=nginx:1.16.1

kubectl rollout status deployment/nginx-deployment

kubectl get rs

kubectl get pods

kubectl logs <POD-NAME>

kubectl cluster-info

kubectl get events

kubectl config view

## delete pods. You can delete a pod, but another can be created if replica is more than 1
kubectl delete pod/nginx-deployment-cbdccf466-pgjnq

## delete deployment and pods
kubectl delete deployment nginx-deployment --grace-period=-10

kubectl delete deployment --all --namespace=default --grace-period=-10

### scale: replicas of the pods
kubectl scale --replicas=1 deployment/nginx-deployment

kubectl scale --replicas=2 deployment/nginx-deployment

### autoscale: min, max replicas of the pods
kubectl autoscale deployment/nginx-deployment --min=10 --max=15 --cpu-percent=80

### setup memory and server
kubectl set resources deployment/nginx-deployment -c=nginx --limits=cpu=200m,memory=512Mi


### check the history
kubectl rollout history deployment/nginx-deployment

## check the history the revision number
kubectl rollout history deployment/nginx-deployment --revision=1

## Rolling Back to a Previous Revision
kubectl rollout undo deployment/nginx-deployment

## Rolling Back to a specific Revision
kubectl rollout undo deployment/nginx-deployment --to-revision=2

kubectl describe deployment nginx-deployment

## Pause deploy
kubectl rollout pause deployment/nginx-deployment

## Resume deploy
kubectl rollout resume deployment/nginx-deployment

## Watch the status of the rollout until it's done.
kubectl get rs -w

deploy a nginx

for creating the ingress-controller to expose an external ip. just do it only one time, when the minikube is installed into the machine

helm repo add ingress-nginx https://kubernetes.github.io/ingress-nginx
helm install my-ingress-server ingress-nginx/ingress-nginx

(Not working for minikube)

minikube delete

minikube start

minikube dashboard

kubectl apply -f ./deploy/nginx-deployment.yaml

kubectl get all

kubectl get svc nginx-service

minikube ip

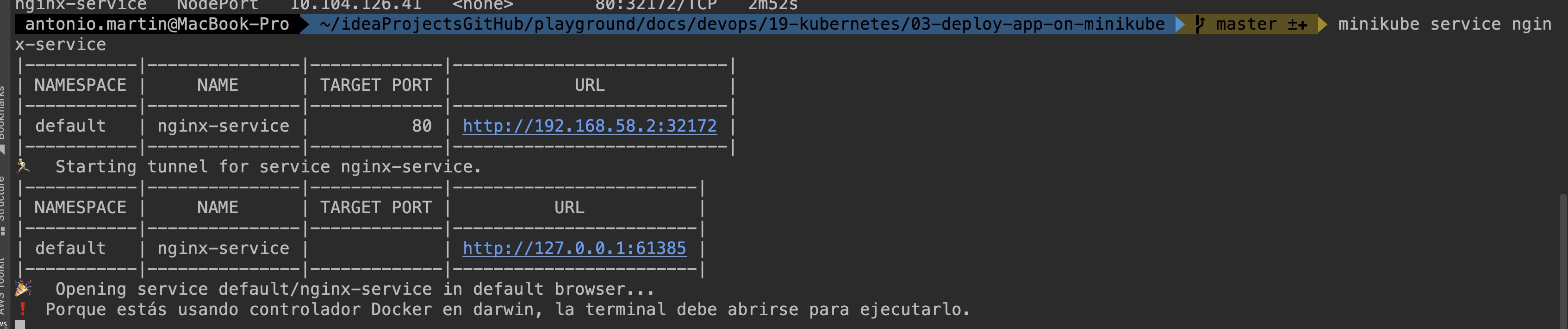

# here is the key: Allow external traffic starting tunnel for service nginx-service.
minikube service nginx-service
# or
minikube tunnel

open a web page on the url http://127.0.0.1:61385/


In real k8s: Allow external traffic

By default, the pod is only accessible by its internal IP within the Kubernetes cluster. In order to make the hello-node container accessible from outside the kubernetes virtual network, you have to expose the pod as a kubernetes service.

From our development machine we can expose the pod to the public internet using the kubectl expose command combined with the --type="LoadBalancer" flag. The flag is needed for the creation of an externally accessible ip:

kubectl expose deployment nginx-deployment --type="LoadBalancer"
