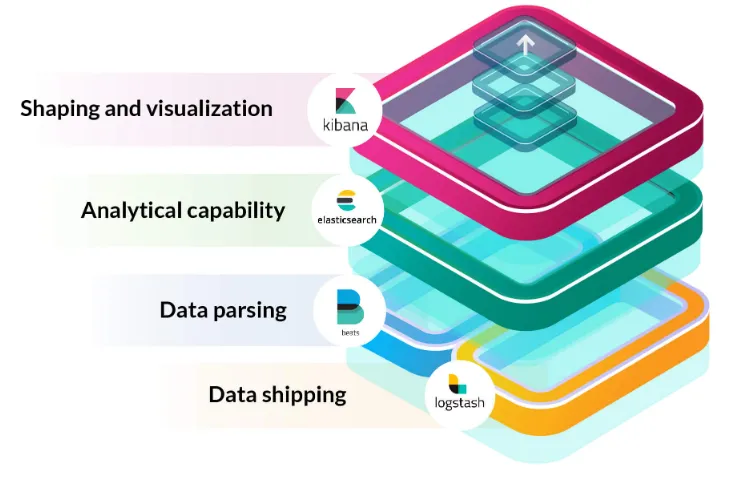

Elastic Stack (ELK) E-elasticsearch, L-logstash (log shipping), K-kibana

Kibana is an open source data visualization and user interface for Elasticsearch. We can think of Elasticsearch as a database and Kibana as the web user interface that we can use to create graphs, queries, indexes in Elasticsearch.

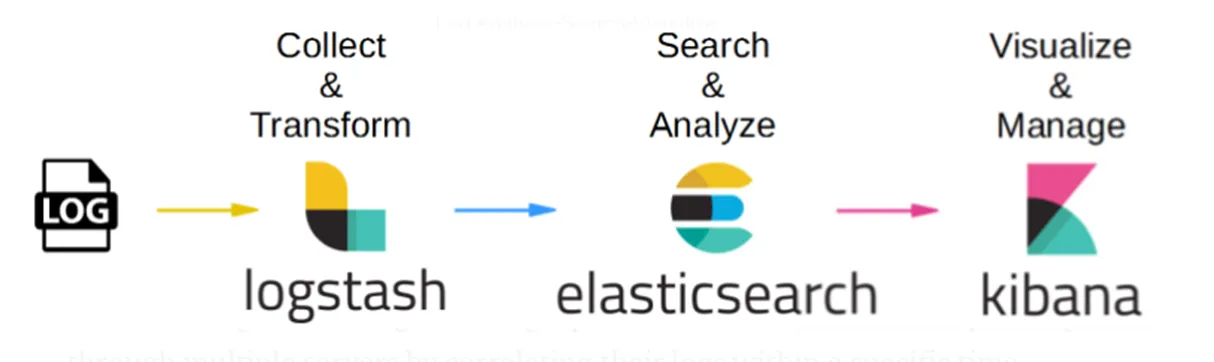

Also you can see the image,

Logstash is collecting logs and transform Elasticsearch is searching and analysing logs Kibana is visualize ana manage logs


RUN on DOCKER Verify that Elasticsearch is up and running

Elasticsearch is up and running http://localhost:9200

Check the indexes http://localhost:9200/_aliases

Verify that Kibana is up and running

Navigate to http://localhost:5601 to ensure Kibana is up and running
